Very-low-noise and programmable very-high-gain DC-voltage amplifier with precision offset trimming
The TS_VA_LNDC_X8 comprises the main function dcamp and its companion dcamptrim.
Overview
The TS_VA_LNDC_X8 comprises the main function dcamp and its companion dcamptrim. The dcamp is a very-low-output-noise-level (604µVRMS max) and 1%-precise programmable very-high-gain (32 selectable gains up to 400V/V) DC-voltage amplifier, with an extra differential input for precision offset trimming by the dual 8-bit one’s-complement-coded DAC dcamptrim.
The dcamp and dcamptrim operate with one supply voltage VDDA4 (4V typical) and one precision reference voltage VREF (2.5V).
The dcamp complies with 2kV electrostatic discharges on its analog terminals VIN, FB_IN and VOUT.
The minimum continuous operation lifetime spans 100000 hours.
Operating conditions
| Parameters | Values |
| Junction temperature range | 20ºC to +80ºC |
| Supply voltage | VDDA4: 3.9V to 4.1V (supplied by the additional IP Reg_4V) |
| Reference voltage | VREF: 2.5V |
| Reference sink current intensity | I(IBPU): 19.5µA to 20.5µA |
| Switched load to dcamp output | 35pF to 45pF with series switch resistance within 70Ω to 110Ω |
Specification
| Parameters | Values |
| dcamp output noise level over 1Hz to 10MHz, at max gain | 604µVRMS max |
| dcamp DC output offset at maximum gain, after offset calibration by means of dcamptrim | -10mV to +10mV |
| dcamptrim differential output voltage step width | -25µV |
| dcamptrim differential output voltage range | ±3.175mV |
| dcamp 1%-precision-linear-response output voltage range | 100mV to 2.5V |
| dcamp recovery time of output voltage precision within 38µV, upon charging switched load capacitor from 0.1V to 2.4V or discharging from 2.4V to 0.1V, at maximum gain | 2µs max |
| dcamp 3dB cut-off frequency, at max gain | 15.2Hz min, 30.5Hz max |
| dcamp PSRR over frequencies up to 10 MHz, DC-level PSRR | 21.8dB min, 50.6dB min |
| dcamp + dcamptrim operating power consumption Enable EN, EN_DCAMP high | 2.7mW max |
| dcamp + dcamptrim powerdown-mode current consumption Enable EN, EN_DCAMP low | 20nA max |
| dcamp Area | 2.56mm² |
| dcamptrim Area | 0.64mm² |
Block Diagram

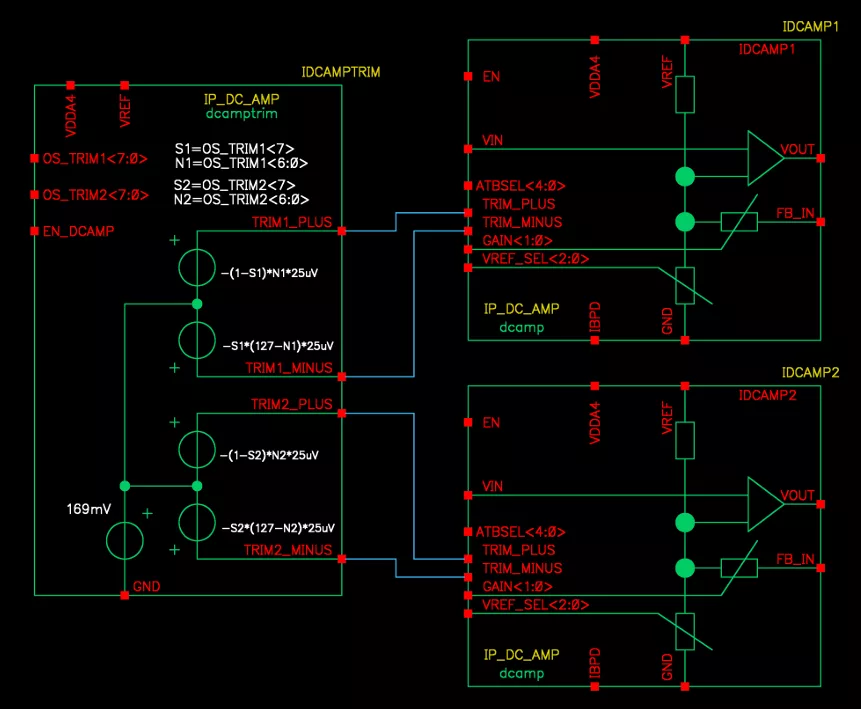

TS_VA_LNDC_X8 block diagram
