14-stereo AAC-LC Audio Encoder

The IPB-AAC-LC-ME-14 is an IP core for encoding up to 14 stereo audio streams in real-time, in one of the following configuration…

Contact Provider Request Datasheet

Overview

The IPB-AAC-LC-ME-14 is an IP core for encoding up to 14 stereo audio streams in real-time, in one of the following configurations: 14 stereo channels or 12 stereo channels and a 5.1 channel.
The IPB-AAC-LC-ME-14 software requires an audio engine platform named IPB-PLAT-71, which includes 7 processors and one accelerator.
The encoder can be configured, run and monitored by means of a configuration, control, and status register file accessed by APB or SPI.

Key features

  • GENERIC FEATURES
    • All encoders use the Fraunhofer IIS software
    • Configurable output latency useful to synchronize with other sources (up to 8 frames)
    • Software interface protocol for control, configuration and monitoring
    • Parameter change without stopping the encoding process
  • AAC-LC STEREO FEATURES
    • AAC-LC encoders are compliant with the ISO/IEC 13818-7, ISO/IEC 14496-3 and Japanese ARIB standard
    • Supported channel modes: mono, stereo and dual mono
    • Supported sample rates: 11.025, 12, 16, 22.05, 24, 32, 44.1 and 48 kHz
    • Maximum 16-bit input audio resolution
    • Minimum latency: 1 frame
    • Supported transport types: raw, ADIF, LATM/LOAS and ADTS (with ARIB support and CRC)
    • Supported bitrate control modes: fixed framing, constant bitrate and variable bitrate
  • AAC-LC 5.1 FEATURES
    • MPEG2/4 AAC-LC are compliant with the ISO/IEC 13818-7, ISO/IEC 14496-3 and Japanese ARIB standard
    • Supported channel modes: mono, dual mono, stereo (2.0), 2.1, 3.0, 3.1, 4.0, 5.0, and 5.1
    • Supported sampling rates: 8, 16, 22.05, 32, 44, 44.1 and 48 kHz
    • Maximum 16-bit input audio resolution
    • Minimum latency: 1 frame for up to 2 channels, 2 frames for more than 2 channels per stream
    • Supported transport types: raw, ADIF, LATM/LOAS and ADTS (with ARIB support and CRC)
    • Supported bitrate control modes: fixed framing, constant bitrate and variable bitrate

Block Diagram

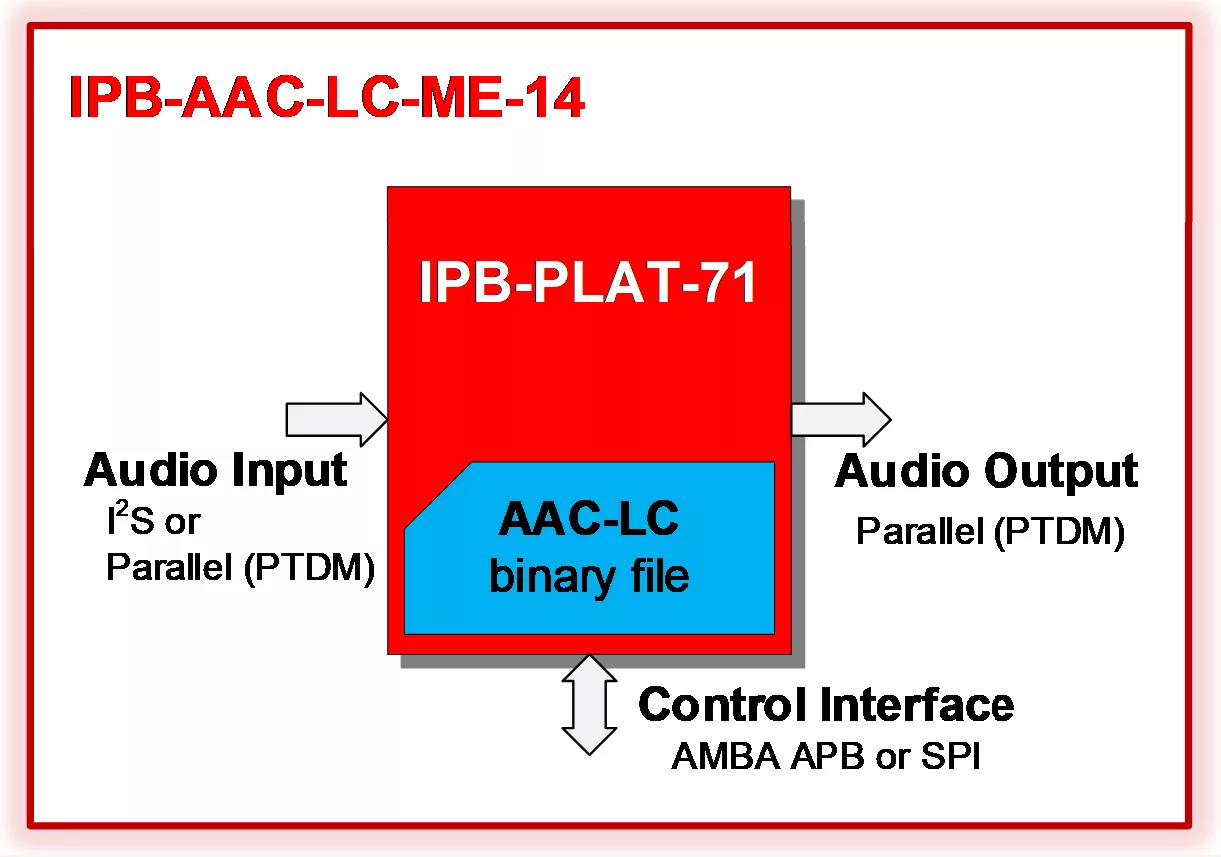

IPB-AAC-LC-ME-14 block diagram

What’s Included?

  • Optimized netlist for the target FPGA
  • Software manual
  • Hardware datasheet
  • Synthesis constraints

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
IPB-AAC-LC-ME-14
Vendor
Coreworks, S.A.

Provider

Coreworks, S.A.
HQ: Portugal
