12-bit 250MHz Decimation filter with 43 taps
The ODT-DSP-DEC-43T250M-T16 is a 12-bit 250MHz Decimation filter with 43 taps in a 12/16nm CMOS process.
Overview
The ODT-DSP-DEC-43T250M-T16 is a 12-bit 250MHz Decimation filter with 43 taps in a 12/16nm CMOS process.
The 43 Tap Decimation filter reduces the output data rate (fDOUT) by a factor of 4 compared to the input data rate (fDIN) from an ADC.
Programmable coefficients allow customization of the filter characteristics for various application needs.
The filter is designed with programmable gain/attenuation settings for the output. Filter area is optimized by reducing the number of multipliers.
Filter has bypass mode option where DIN is directly passed to DOUT.
Key features
- Programmable Coefficients
- Programmable gain/attenuation at the output
- 4X Decimation Factor
- 12-Bit operation

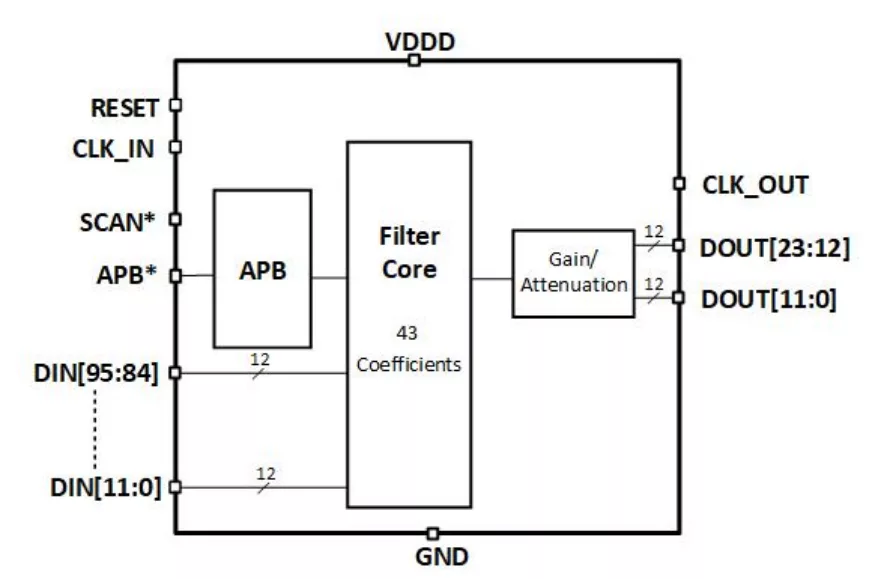

Block Diagram
ODT-DSP-DEC-43T250M-T16 block diagram
Applications
- High speed data acquisition systems
- RF systems
- DSP applications
What’s Included?
- Datasheet
- Hard Macro (GDSII and CDL)
- Verilog Model
- Liberty Files
- Power Spreadsheet
- Physical Abstract (LEF)
- Integration and Customer Support
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| TSMC | 16nm | 16nm 160 nm | — |
Specifications
Identity
Part Number
ODT-DSP-DEC-43T250M-T16
Vendor
Omni Design Technologies, Inc.
Type
Silicon IP
Provider
Omni Design Technologies, Inc.
HQ:
USA
