10M/100M/1G/10G/25G Unmanaged Ethernet Switch

Silicon-Agnostic, Compact and flexible Ethernet Switch IPs Unmanaged Ethernet Switch IP cores are a family of Ethernet switching …

Contact Provider Request Datasheet

Overview

Silicon-Agnostic, Compact and Highly flexible Ethernet Switch IPs

Unmanaged Ethernet Switch IP cores are a family of Ethernet switching IPs that provide a variety of port configurations, including 1G, 1G/10G, 10G, and 10G/25G options. The unmanaged Ethernet switch IP cores family is a size-optimized implementation of non-blocking crossbar switches designed to support wire-speed packet processing and forwarding.

The unmanaged Ethernet switch IP cores family features FCS validation/recalculation, MAC learning/forwarding/ageing and VLAN tagging including implementing a store-and-forward switching architecture.

The number of ports is configurable at compile time, making the unmanaged Ethernet switch IP cores solution highly flexible and the solutions from Comcores are silicon-agnostic, making them suitable for implementation in any ASIC, FPGA, or ASSP technology.

Key features

Delivers Performance

  • Automatic MAC address learning and aging
  • Support programmable static forwarding entries
  • Ethernet Multicast support
  • Full duplex Ethernet interfaces
  • Supports Access port VLAN and Trunk port VLAN operation

Highly Configurable

  • Configurable for up to 16 + 4 ports at compile time
  • Supports configurable queuing behaviour, including round-robin and fair queuing

Easy to Use

  • Compatible with GMII, RGMII, XGMII, and XXVMII interfaces for seamless connection to external Physical Layer devices (PHYs)
  • Easy integration with standard Xilinx AXI4 Lite control interface
  • Can be implemented with or without an external microcontroller

Silicon Agnostic

  • Designed in Verilog and targeting both ASICs and FPGAs

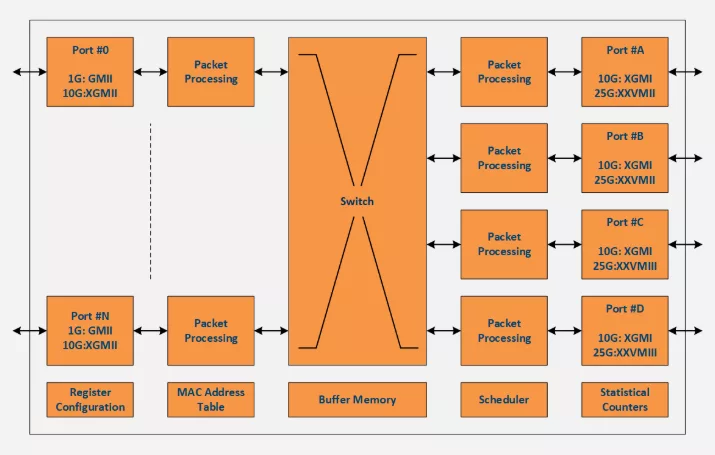

Block Diagram

10M/100M/1G/10G/25G Unmanaged Ethernet Switch block diagram

What’s Included?

The IP Core can be delivered in Source code or Encrypted format. The following deliverables will be provided with the IP Core license:

  • Solid documentation, including User Manual and Release Note
  • Simulation Environment, including Simple Testbed, Test case and Test Script
  • Programming Register Specification
  • Timing Constraints in Synopsys SDC format
  • Access to support system and direct support from Comcores Engineers
  • Synopsys SGDC Files (optional)
  • Synopsys Lint, CDC and Waivers (optional)

Specifications

Identity

Part Number
10M/100M/1G/10G/25G Unmanaged Ethernet Switch
Vendor
Comcores

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Comcores
HQ: Denmark
Comcores is a market leader in the development of state-of-the-art IP-cores for communication systems. The company is a leading provider of digital components for high-speed digital connectivity between wireless communication network components as well as radio functionality in existing and next-generation mobile infrastructure networks. Comcores offers leading IP cores solutions, expertise in research and development as well as custom design solutions.
