Vendor: Dolphin Semiconductor Category: Audio Codec

100 dB of SNR, 24-bit stereo audio CODEC with embedded regulator and I/Os, benefits from BassPower(TM) System

sCODS100-LB-IO-N.12-Xenon is a feature-rich and audio CODEC which provides the insurance of the best sound quality after integrat…

Contact Provider Request Datasheet
TSMC 40nm LP eFlash In Production View all specifications

Overview

sCODS100-LB-IO-N.12-Xenon is a feature-rich and audio CODEC which provides the insurance of the best sound quality after integration into application processors for Smartwatches.
Its small area ensures a cost-effective SoC integration in advanced processes and its BassPowerTM feature contributes to the reduction of the BoM cost and of the PCB size.
Furthermore, fabless makers have the insurance to benefit from the best audio quality at system-level thanks to the unique features embedded with the CODEC for its best resilience to the various noise sources.

Key features

  • Self adaptive sound level during recording with Automatic Gain Control (AGC)
  • Fast and easy integration with embedded analog I/O cells
  • Pop-up Noise Reduction System with predictable level
  • Embedded regulator ensures the best resilience to noise from power supply and minimizes the bill of material
  • Automatic Fs synchronization system
  • PLL-less solution for eliminating jittered PLL which decreases audio performances
  • Jerkless solution ensures the best resilience to period deviation on data path

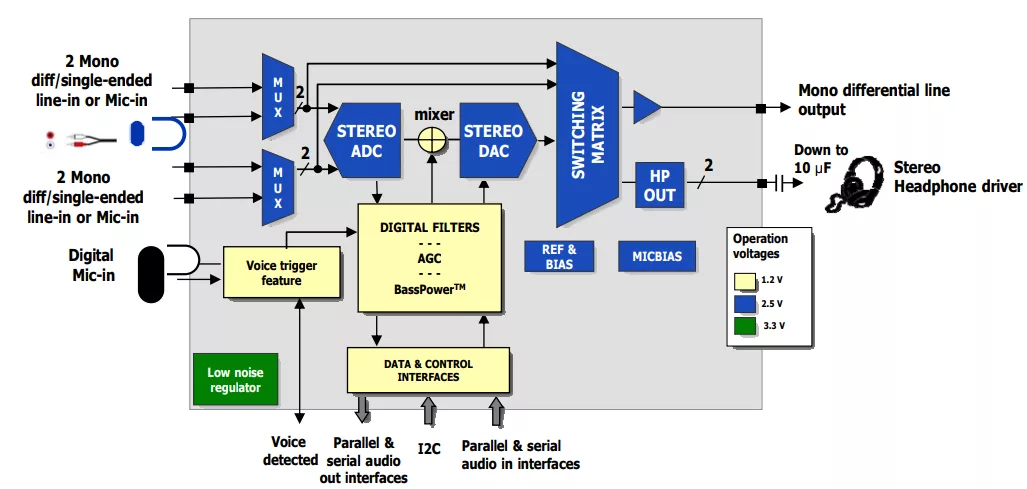

Block Diagram

sCODS100-LB-IO-N_12.TSMC.40.LP block diagram

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Silicon Options

Foundry Node Process Maturity
TSMC 40nm LP eFlash In Production

Specifications

Identity

Part Number
sCODS100-LB-IO-N_12.TSMC.40.LP
Vendor
Dolphin Semiconductor

Provider

Dolphin Semiconductor
HQ: France
Dolphin Semiconductor is a leading provider of semiconductor IP solutions, specializing in mixed signal IP design targeting markets such as Industrial, High-Performance Computing, Consumer Electronics, IoT and Automotive. Dolphin Semiconductor cutting-edge technology IPs in power management, high-quality audio, power metering, and design safety/robustness, allow their customers to accelerate design cycles, foster faster time-to-market and build products that address the challenges of any industry and support a more sustainable world. With a customer-centric approach, Dolphin Semiconductor provides exceptional support for successful project outcomes.
Contact Dolphin Semiconductor

Learn more about Audio Codec IP core

Paving the way for the next generation audio codec for the True Wireless Stereo (TWS) applications - PART 1 : TWS challenges explained

The audio market for wireless Bluetooth headsets is growing rapidly. Audio devices using Bluetooth (BT) connectivity are more ubiquitous than ever. People have gotten used to wireless audio systems, and the mobile phone industry is pushing towards a world without audio connectors and cables. The latest trend in wireless headsets and speakers is True Wireless Stereo systems (TWS), consisting of two independent units that are each charged in their own charging case.

Frequently asked questions about Audio Codec IP cores

What is 100 dB of SNR, 24-bit stereo audio CODEC with embedded regulator and I/Os, benefits from BassPower(TM) System?

100 dB of SNR, 24-bit stereo audio CODEC with embedded regulator and I/Os, benefits from BassPower(TM) System is a Audio Codec IP core from Dolphin Semiconductor listed on Semi IP Hub. It is listed with support for tsmc In Production.

How should engineers evaluate this Audio Codec?

Engineers should review the overview, key features, supported foundries and nodes, maturity, deliverables, and provider information before shortlisting this Audio Codec IP.

Can this semiconductor IP be compared with similar products?

Yes. Buyers can compare this product with similar semiconductor IP cores or IP families based on category, provider, process options, and structured technical specifications.

×
