Vendor: NTLab Category: DLL

10 to 200 MHz DLL-based frequency multiplier

DLL-based frequency multiplier is a simple to configure and operate block, combining, small area and low current consumption.

Contact Provider Request Datasheet
GlobalFoundries 55nm Silicon Proven View all specifications

Overview

DLL-based frequency multiplier is a simple to configure and operate block, combining, small area and low current consumption. Block wakes up in “pass-through” mode with redirecting input reference frequency to the output. After being configured and enabled the block waits until DLL locks and then switches output clock signal CLK_OUT to higher frequency. Disabling block switches it back to “pass-through” mode. Any mode switching is glitch-protected.

Key features

  • Global Foundries CMOS 55 nm
  • 10 – 200 MHz output frequency
  • 0.01 – 100 MHz reference frequency
  • Glitch-free mode switching
  • DLL lock indication
  • Flexible configuration
  • Multiplication factor 1, 2, 3 or 4

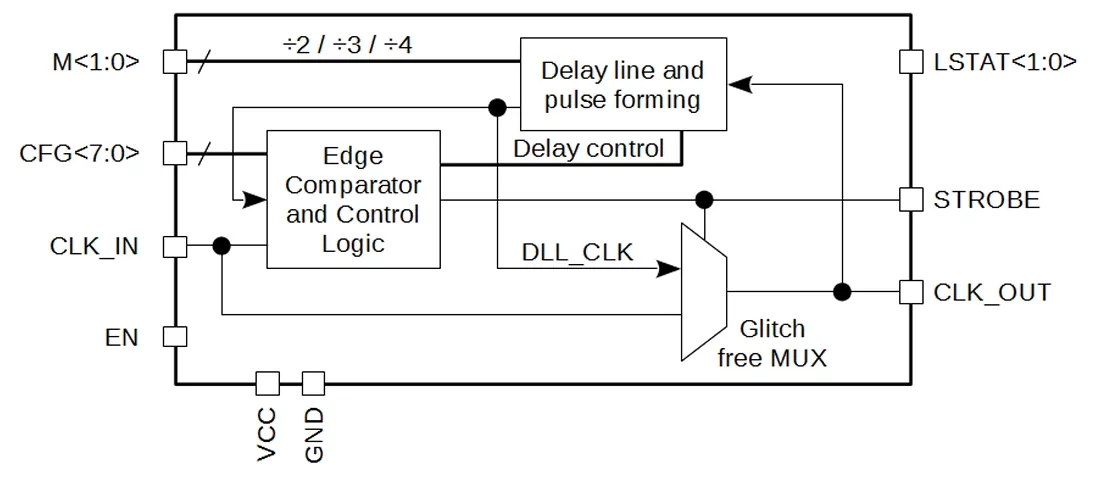

Block Diagram

055GF_DLL_01 block diagram

Applications

  • Digital circuit clocking

What’s Included?

  • Schematic or NetList
  • Abstract model (.lef and .lib files)
  • Layout view (optional)
  • Behavioral model (Verilog)
  • Extracted view (optional)
  • GDSII
  • DRC, LVS, antenna report
  • Test bench with saved configurations (optional)
  • Documentation

Silicon Options

Foundry Node Process Maturity
GlobalFoundries 55nm 55 550 nm Silicon Proven

Specifications

Identity

Part Number
055GF_DLL_01
Vendor
NTLab
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

NTLab
HQ: Lithuania
NTLab is a vertically integrated microelectronics design center. It has 70+ experienced and qualified engineers. NTLab specializes in the designing of mixed-signal and RF ICs and Systems-on-Chip. It has a wide range of own silicon-verified IP blocks: processor cores, interfaces, analog and high-frequency PHYs, etc., thus allowing customized design to be fast and predictable. In-company unique combination of competences in digital, analog and RF circuits and embedded software enables NTLab to participate in the projects that require deep research and utilize most sophisticated and advanced techniques: multi-system GPS/GLONASS/Galileo/BeiDou/NavIC(IRNSS)/QZSS/SBAS navigation, RF ID, wireless communications, etc. All designed ICs are provided with test and development tools, as well as with reference software. NTLab offers a wide range of silicon proven analog/mixed-signal IPs in 0.35µm, 0.25 µm, 0.18 µm, 0.13 µm, 0.09 µm, 65nm, 55nm, 40nm, 28nm, 22 nm CMOS and SiGe BiCMOS processes. These IPs are suitable for devices targeted both consumer and industrial markets. Most of these IPs have been proven in silicon on the foundries: Samsung, UMC, GlobalFoundries, SMIC, VIS, Tower, X-FAB, iHP, AMS, SilTerra, STMicroelectronics, Winfoundry.
Contact NTLab
