Vendor: Omni Design Technologies, Inc. Category: High-Speed

1 Gb/s LVDS Bidirectional IO on 12nm

The ODT-LVDS-BID1G-12nm is a high-speed Bidirectional LVDS IO cell capable of operating up to 1 Gb/s.

Contact Provider Request Datasheet

Overview

The ODT-LVDS-BID1G-12nm is a high-speed Bidirectional LVDS IO cell capable of operating up to 1 Gb/s.

The ODT-LVDS-BID1G-12nm uses a high-speed signal path that can provide low jitter for input ranges of up to 1 Gb/s input. It also features small area and low power consumption. It includes the internal termination resistor and ESD protection diodes on the VEXTP and VEXTN pins.

Key features

  • Up to 1 Gb/s Data Rate
  • LVDS Input/Output
  • Ultra-compact size
  • Embedded ESD Diodes
  • Functional from -40°C to 125°C

Block Diagram

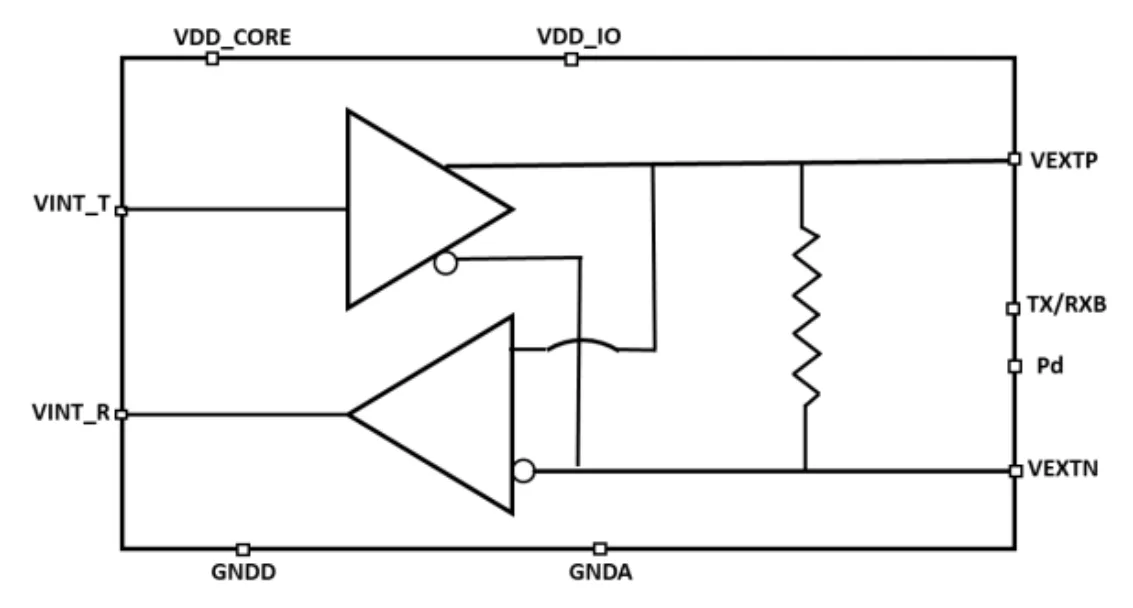

ODT-LVDS-BID1G-12 block diagram

Applications

  • Test and measurement
  • PLL Interface
  • Data Converter Timing interface

What’s Included?

  • Datasheet
  • Hard Macro (GDSII)
  • Characterization Report (as applicable)
  • Abstract View (LEF) for top level connectivity
  • Spectre Netlist (as needed upon request)
  • Behavioral Model
  • Integration and Customer Support
