USB 2.0 Verification IP

The USB 2.0 Verification IP provides an effective & efficient way to verify the components Supporting USB2 Revision 2.0 Specifica…

Contact Provider Request Datasheet
Verification IP View all specifications

Overview

The USB 2.0 Verification IP provides an effective & efficient way to verify the components Supporting USB2 Revision 2.0 Specification The USB 2.0 VIP is fully compliant with standard USB 2.0 specifications from USB-IF. This VIP is a light weight with an easy plug-and-play interface so that there is no hit on the design cycle time.

Key features

  • Supports BOT Protocol and UASP Bulk transfers also.
  • Supports Multi RootHUB ports to connect multiple USB2 HUBs/Devices with USB2 HOST
  • Fully compliant to the USB2.0, xHCI 1.1, Utmi+ 1.0 & ULPI Transceiver Interface Specification with backward compatility to USB 1.1.
  • Supporting On-The-Go which is fully compliant OTG Rev 2.0, V1.1a.
  • Supports xHCI functionality on Host model.
  • Host Model Supports upto 127 devices of any tier level.
  • Supports 15 IN and 15 OUT and 1 control endpoint for each device.
  • User controlled device attach/ detach function.
  • Supporting preamble generation and detection.
  • Supports High Speed, Full speed,Low Speed Functionality.
  • Programmable SOF generation time.
  • Supports all USB2 transfer types; Control, Bulk, Interrupt, Isochronous.
  • Supports High Bandwidth ISO and Interrupt transfers.
  • Supports suspend, resume, remote wake-up, and low-power management (LPM).
  • Configurable Utmi+ Interface width 8 and 16 bits.
  • Supports FsLsSerial Mode with both UTMI and ULPI Transceiver Interface for Full and Low speed.
  • Supports Randomization for packet fields and data payload with or without error injection.
  • Comprehensive Compliance Test Suite for verification.
  • Supports all types of error injection (control transfer error injection(Request error), PID, CRC, Interpacket Delay, Sync, EOP, Bitstuff etc.) and detection.
  • Supports detailed activity log file for individual layers for ease of Debugging.
  • Supports dynamically configurable modes.
  • Strong Protocol Monitor with real time exhaustive programmable checks.
  • Supports to configure Protocol Timers and intentional error masking.
  • On the fly protocol checking using protocol check functions, assertion checks for UTMI and ULPI Interface.
  • Built in Coverage analysis.
  • Provides a comprehensive user API (callbacks) in Host and Device.
  • Graphical analyzer to show transactions for easy debugging.

Block Diagram

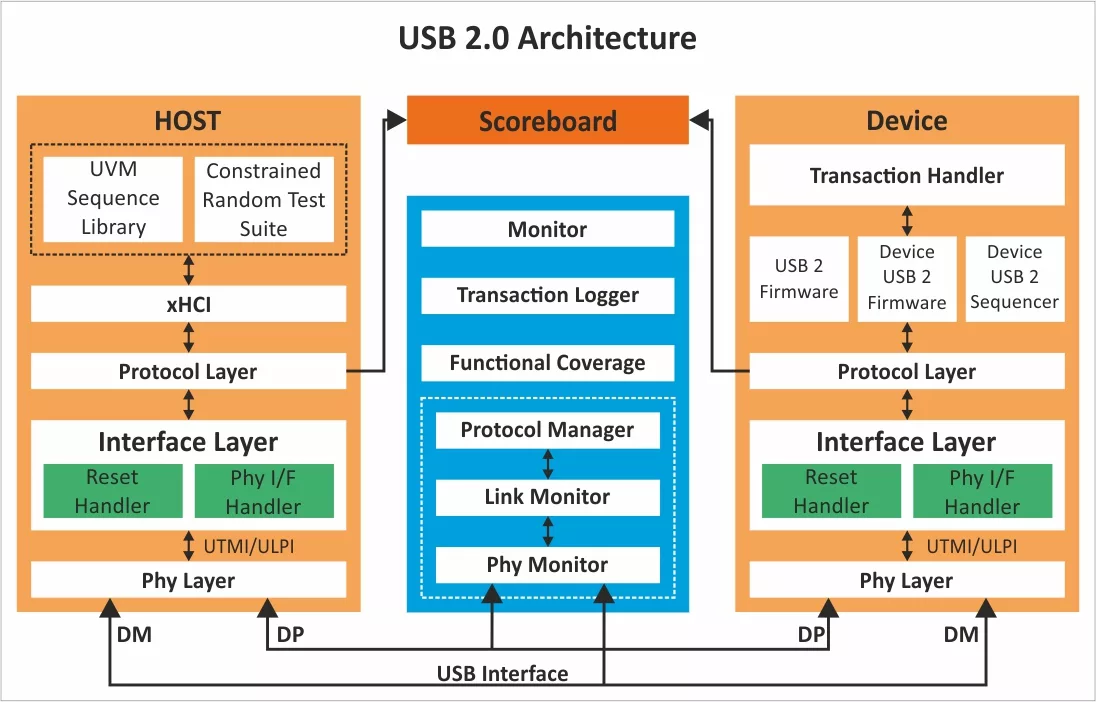

USB 2.0 Verification IP block diagram

Benefits

  • Available in native SystemVerilog (UVM/OVM/VMM) and Verilog
  • Unique development methodology to ensure highest levels of quality
  • 24x5 customer support & response under 90 Min.
  • Unique and customizable licensing models
  • Exhaustive set of assertions and cover points with connectivity example for all the components
  • Consistency of interface, installation, operation and documentation across all our VIPs
  • Provide complete solution and easy integration in IP and SoC environment

What’s Included?

  • USB2.0 HOST/DEVICE BFMs
  • USB 2.0 Bus Monitor, Protocol Monitor and Scoreboard.
  • BFM Agents for :
    • Protocol Layer
    • PHY Layer
  • Compliance Test Suite (CTS)
  • Stress test for each standard layer
  • xHCI VIP compatible with Revision 1.2
  • Integration Guide, User Manual and Release Notes
  • GUI analyser to view simulation packet flow

Specifications

Identity

Part Number
USB 2.0 Verification IP
Vendor
Truechip Solutions
Type
Verification IP

Files

Product Sheet Download
