Ultra-Compact 3GPP Cipher Core

The ZUC1 core implements ZUC stream cipher in compliance with the 3GPP Confidentiality and Integrity Algorithms 128-EEA3 & 128-EIA3 version 1.6. It produces the keystream that consists of 32-bit blocks using 128-bit key and IV.

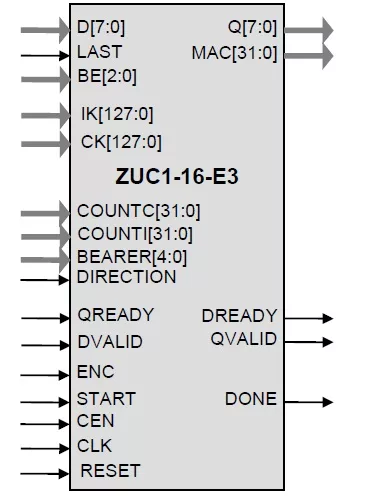

Multiple configurations of ZUC1 core are available; the number after dash indicates the throughput in bits per clock, so ZUC1-32 version is 4 times faster than ZUC1-8. Enhanced –E3 version is available that supports both EEA3 and EIA3 confidentiality and integrity algorithms. Compact ZUC1-2-E3 core is very small (12K gates).

The design is fully synchronous and available in both source and netlist form. Test bench includes the ETSI/SAGE test vectors.

• Keystream generation using the ZUC Algorithm version 1.6 (ZUC-2011)
• High throughput: up to 40 Gbps in 65 nm process, 10 Gbps in Altera Stratix III
• Small size: from 7.5K ASIC gates
• Satisfies ETSI SAGE ZUC and EAE3/EIA3 specifications
• Outputs keystream in 32-bit data blocks
• Uses 128-bit key and IV
• Completely self-contained: does not require external memory
• Available as fully functional and synthesizable Verilog, or as a netlist for popular programmable devices and ASIC libraries
• Deliverables include test benches

• Secure mobile communications
• 3GPP Confidentiality and Integrity Algorithm 128-EEA3 & 128-EIA3

• HDL Source Licenses
  • Synthesizable Verilog RTL source code
  • Testbench (self-checking)
  • Test vectors
  • Expected results
  • User Documentation
• Netlist Licenses
  • Post-synthesis EDIF
  • Testbench (self-checking)
  • Test vectors
  • Expected results
