SPI Serial Peripheral Interface Master/Slave

The CC-SPI-AXI is a synthesisable Verilog model of a SPI serial peripheral interface Master/Slave controller.

Contact Provider Request Datasheet

Overview

The CC-SPI-AXI is a synthesisable Verilog model of a SPI serial peripheral interface Master/Slave controller. The SPI core can be efficiently implemented on FPGA and ASIC technologies.

Key features

  • SPI-compatible interface
  • AMBA AXI4-Lite bus
  • Master or slave mode
  • Full duplex
  • Programmable clock rate up to PCLK/2
  • Slave speed up to PCLK/8
  • Up to 8 slave select lines
  • Slave MISO output enable generation for multiple slaves
  • Configurable clock polarity and phase
  • LSB or MSB mode
  • 8, 16, 24, 32 bits data transfer mode
  • Maskable interrupts
  • Dedicated upstream and downstream DMA interface
  • Fully synthesizable synchronous design with positive edge clocking
  • DFT ready

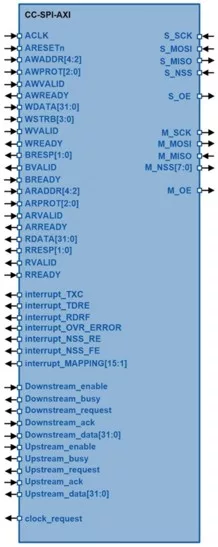

Block Diagram

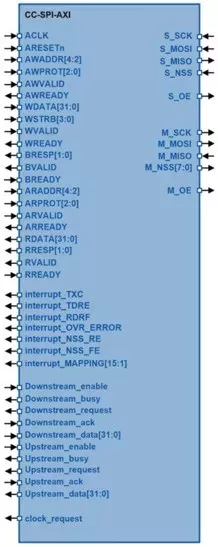

CC-SPI-AXI block diagram

Benefits

  • Synthesizable RTL Verilog source code
  • Technology independent IP Core
  • Suitable for FPGA and ASIC
  • Silicon and FPGA proven
  • Easy SoC integration
  • Full implementation and maintenance support with individual approach
  • Flexible licensing scheme

What’s Included?

  • Verilog RTL source code
  • Verification suite
  • Datasheet and integration guide
  • C-header file
  • Constraints
  • Technical support

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.
