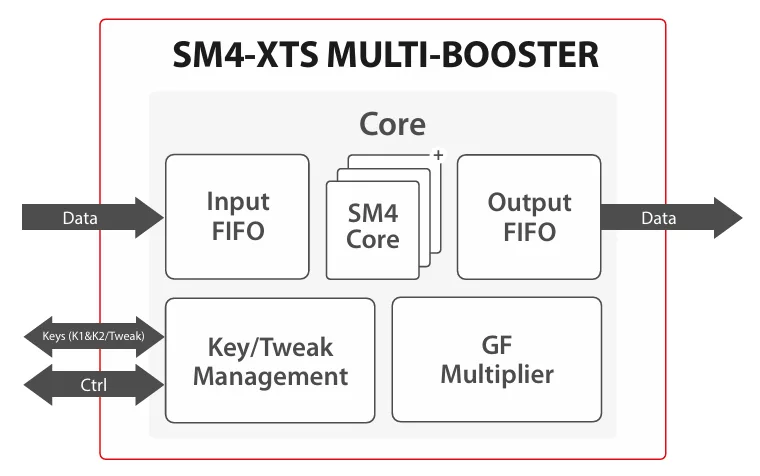

SM4-XTS Multi-Booster

The SM4-XTS Multi-Booster crypto engine includes a generic & scalable implementation of the SM4 algorithm (a block cipher specified by the OSCCA) making the solution ideal for high-end applications (including key, tweak, input and output registers and Galois field multiplier).

This crypto engine targets high-performance applications such as data storage and memory encryption. Thanks to its scalability, it can be tailored to reach the best trade-off between performances, area and technology.

Implementation aspects

The SM4-XTS crypto engine is easily portable to ASIC and FPGA. It supports a wide range of applications on various technologies. The unique architecture enables a high level of flexibility. The throughput and features required by a specific application can be taken into account in order to select the most optimal and compact configuration.

For other SM4 solutions, please see dedicated product sheets: SM4 Standard Crypto Engine (SCZ_IP_BA419) and SM4-GCM Multi-Booster (SCZ_IP_BA415).

• ASIC and FPGA
• High throughput:
  • ASIC: >400 Gbps
  • FPGA: 100 Gbps/s
• Scalable solution
• Can be provided with AXI DMA & software
• Masking option available with excellent protection against SPA & DPA
• Cipher stealing (optional)
• Low power feature
• Straight forward integration with simple FIFO interfaces

• Off-the-shelf, predictable and silicon-proven solution
• Easy-to-Integrate
• Unrivaled speed performance
• Logic footprint optimized to performance requirements and used functionalities
• Scalable Multi-Core solution enabling best trade-off between area and performance
• Portable and optimized to ASIC or FPGA technology
• Upgradeable to new performance requirements or to new generations of ASIC or FPGA technology
• User-friendly Software API

• Encrypted Disk/Data storage
• External memory encryption

• Netlist or RTL
• Scripts for synthesis
• Self-checking TestBench based on FIPS vectors
• Datasheet
• Integration guide
