Vendor: ASICS World Services, LTD. Category: Symmetric Crypto

AES supporting ECB, CBC and XTS/XEX modes. Includes DMA and AXI interface.

This is a high performance, small footprint crypt/decrypt IP Core.

Contact Provider Request Datasheet

Overview

This is a high performance, small footprint crypt/decrypt IP Core. It features up to 8 independent crypt engines. Three DMA engines make sure the core is always provided with a constant data stream. The crypt engines run of a dedicated clock, separate from AXI interfaces.

Key features

  • 100% AES compatible
  • >2.4 GB/sec max throughput
  • Up to 8 engines in parallel (configurable)
  • Supports ECB, CBC and XTS/XEX modes
  • Supports BitLocker acceleration
  • Supports Encryption and Decryption
  • Supports 128, 192 and 256 key sizes
  • 4/8 keys can be stored in each engine
  • Verified against FIPS test vectors
  • Task Based DMA engine
  • Configurable Data Path 32, 64 or 128 bit
  • Fully AXI-4 compatible (data interface)
  • AXI-Light for register Interface
  • Separate clocks for AES engines and AXI interface

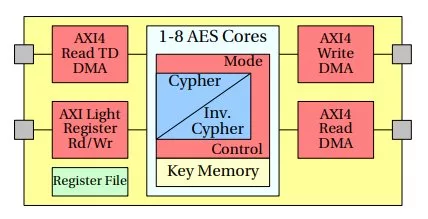

Block Diagram

AES Crypt 1 block diagram

Benefits

  • High Performance, small footprint, flexible

What’s Included?

  • Verilog Source Code
  • Test bench
  • Reference Design
  • technical Support

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
AES Crypt 1
Vendor
ASICS World Services, LTD.

Provider

ASICS World Services, LTD.
ASICs World Services specialize in providing top-notch IP Cores and design services. We will assist you in any phase of the design cycle, or take your idea from the conceptual stage to final product. With over 60 years of experience in the field, we have a long list of successfully completed projects.
Contact ASICS World Services, LTD.
