Vendor: SmartDV Technologies Category: MRAM / RRAM

Serial PCRAM Memory Model

Serial PCRAM Memory Model provides an smart way to verify the Serial PCRAM component of a SOC or a ASIC.

Contact Provider Request Datasheet

Overview

Serial PCRAM Memory Model provides an smart way to verify the Serial PCRAM component of a SOC or a ASIC. The SmartDV's Serial PCRAM memory model is fully compliant with standard Serial PCRAM Specification and provides the following features. Better than Denali Memory Models.

Serial PCRAM Memory Model is supported natively in SystemVerilog, VMM, RVM, AVM, OVM, UVM, Verilog, SystemC, VERA, Specman E and non-standard verification env

Serial PCRAM Memory Model comes with optional Smart Visual Protocol Debugger (Smart ViPDebug), which is GUI based debugger to speed up debugging.

Key features

  • Supports Serial PCRAM memory devices from all leading vendors.
  • Supports 100% of Serial PCRAM protocol standard.
  • Supports all the Serial PCRAM commands as per the specs.
  • Supports Serial peripheral interface (SPI).
  • Supports the following maximum clock frequencies
    • 66 MHz
    • 33 MHz
  • Supports the following SPI protocol modes
    • Legacy SPI
    • Quad I/O mode
    • Dual I/O mode
  • Supports Quad I/O frequency of 50 MHz, resulting in an equivalent clock frequency up to 200 MHz.
  • Supports Dual I/O frequency of 66 MHz, resulting in an equivalent clock frequency up to 132 MHz.
  • Supports the following Continuous Reads and write for entire memory read and write
    • Quad and dual output fast read
    • Quad and dual input fast program
  • Supports Uniform 128Kb sectors (Flash emulation).
  • Supports 128Kb sectors Erase (emulated)
  • Supports the following Write operations
    • Legacy Flash Page Program
    • Bit-alterable page writes
    • Page Program on all 1s (Preset Writes)
  • Supports Write protections for program and erase.
  • Supports JEDEC-standard two-byte signature (DA18h).
  • Supports 128MB density with SOIC16 package.
  • Supports More than 1,000,000 Write cycles.
  • Supports Bit-alterable Write operation.
  • Constantly monitors Serial PCRAM behavior during simulation.
  • Protocol checker fully compliant with Serial PCRAM Specification.
  • Models, detects and notifies the test bench of significant events such as transactions, warnings, timings and protocol violations.
  • Built in functional coverage analysis.
  • Supports Callbacks, so that user can access the data observed by monitor.

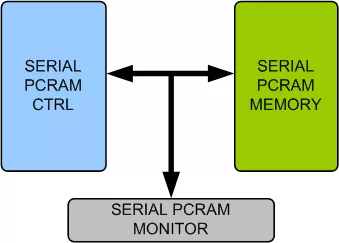

Block Diagram

Serial PCRAM Memory Model block diagram

Benefits

  • Faster testbench development and more complete verification of Serial PCRAM designs.
  • Easy to use command interface simplifies monitor control and configuration.
  • Simplifies results analysis.
  • Runs in every major simulation environment.

What’s Included?

  • Complete regression suite containing all the Serial PCRAM testcases.
  • Examples showing how to connect and usage of Model.
  • Detailed documentation of all class, task and function's used in verification env.
  • Documentation also contains User's Guide and Release notes.

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
Serial PCRAM Memory Model
Vendor
SmartDV Technologies

Provider

SmartDV Technologies
HQ: India
At SmartDV Technologies™, we believe there’s a better way to approach semiconductor intellectual property (IP) for integrated circuits. We’ve been focused exclusively on IP since 2007—so whether you’re sourcing standards-based design IP for your next SoC, ASIC, or FPGA, or seeking verification solutions (VIP) to put your chip design through its paces, you’ll find SmartDV’s IP straightforward to integrate. By combining proprietary SmartCompiler™ technology with the knowledge of hundreds of expert engineers, SmartDV can customize IP to meet your unique design objectives: quickly, economically, and reliably. Don’t allow other suppliers to force onesize-fits-all cores into your chip design. Get the IP you need, tailored to your specifications, with SmartDV: IP Your Way.
