Vendor: Certus Semiconductor Category: High-Speed

Rad-Hard GPIO, ODIO & LVDS in SkyWater 90nm

A radiation-hardened SkyWater 90nm GPIO, ODIO and LVDS Interface.

Contact Provider Request Datasheet
SkyWater 90nm S90 View all specifications

Overview

A radiation-hardened SkyWater 90nm GPIO, ODIO and LVDS Interface.

This Library, developed on SkyWater 90nm CMOS, delivers a radiation-hardened suite of robust interfaces covering general-purpose, open-drain, and high-speed differential signaling needs. The GPIO provides reliable 3.3V digital I/O up to 150 MHz with JESD8C.01 compliance, built-in pull-ups/downs, and 2 kV HBM protection. The ODIO extends flexibility with an open-drain interface optimized for I2C (Standard, Fast, and Fast-Mode Plus), capable of handling large capacitive loads while maintaining tight input thresholds and hysteresis. For high-performance links, the GPLVDS offers a programmable LVDS transceiver supporting up to 1.25 Gbps TX and 300 Mbps RX, fully SpaceWire compliant, while also configurable as dual GPIOs. Together, these cells provide a complete, radiation-hardened I/O portfolio that balances robustness, versatility, and speed for mission-critical applications.

Library Summary

Parameter Value
Process 1.2V
Core VDD 3.3V
VDDIO 3.3V
Temp (GPIO/ODIO) -50C to 200C
Temp (LVDS) -40C to 125C
Max Load GPIO 15-50pF
Max Load ODIO up to 550pF
Max Load LVDS 15pF(TX),0.1pF (RX)
ESD 2kV HBM, 500V CDM
Radiation Rad-Hard by design
BEOL 7M1L1F

Key features

GPIO Features

  • 150MHz 3.3V general-purpose I/O, rad-hard
  • JESD8C.01 LVCMOS33 compliant
  • 2kVHBMESDprotection with built-in 50 kpull-up/down
  • Fast switching: rise/fall 0.3-0.5 ns (15pF load)

 ODIO Features

  • 3.3V open-drain I/O, optimized for I2C
  • Drives heavy capactive loads up to 550pF
  • Strong sink current up to 15mA with 0.5V hysteresis
  • Radiation hardened with robust timing margins

LVDS Features

  • Dual-mode I/O: high-speed LVDS (1.25 Gbps TX / 300 Mbps RX)
  • Fully SpaceWire compliant in LVDS mode
  • Radiation hardened with 2kV HBM ESD
  • Fast edge rates: TX rise/fall 130-280 ps, RX rise/fall  60-460 ps

Block Diagram

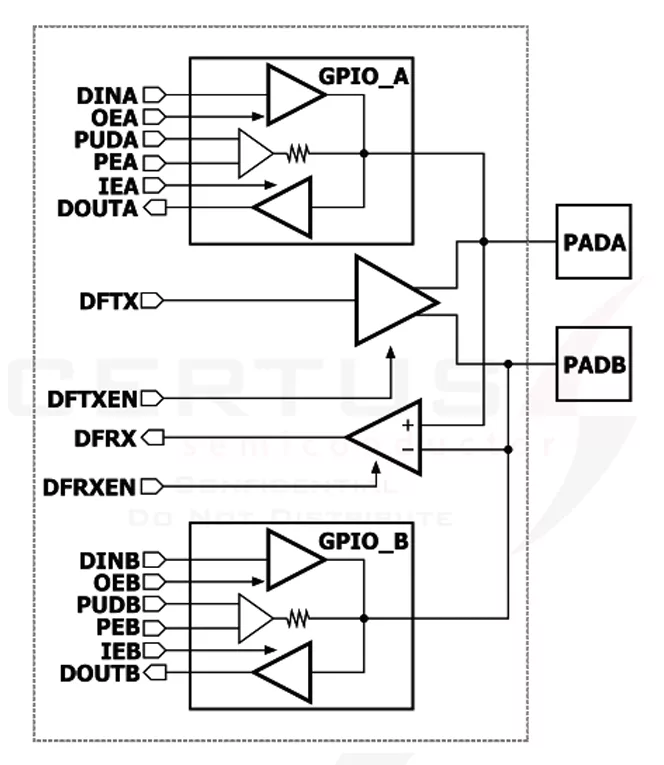

VR90 block diagram

Files

Product Sheet Download
