PWM Verification IP

The PWM Verification IP provides an effective & efficient way to verify the PWM components of an IP or SoC. The VIP is fully compliant with IPWM Specification The VIP is light weight with easy plug-and-play components so that there is no hit on the design cycle time.

• Data registers of either 8,16,24 or 32-bit width.
• One global counter bus and four local counter buses are driven by Unified channels.
• Each channel has its own timebase, alternative to the counter buses.
• One global prescaler and one prescaler per channel.
• Timebases shared through the counter buses
• Control and status bits grouped in separated registers.
• Synchronization among timebases.

• Available in native System Verilog (UVM/OVM/VMM) and Verilog
• Unique development methodology to ensure the highest levels of quality
• 24X5 customer support
• Unique and customizable licensing models
• Exhaustive set of assertions and coverage points with connectivity examples for all the components
• Consistency of interface, installation, operation, and documentation across all our VIPs
• Provide complete solutions and easy integration in IP and SoC environment

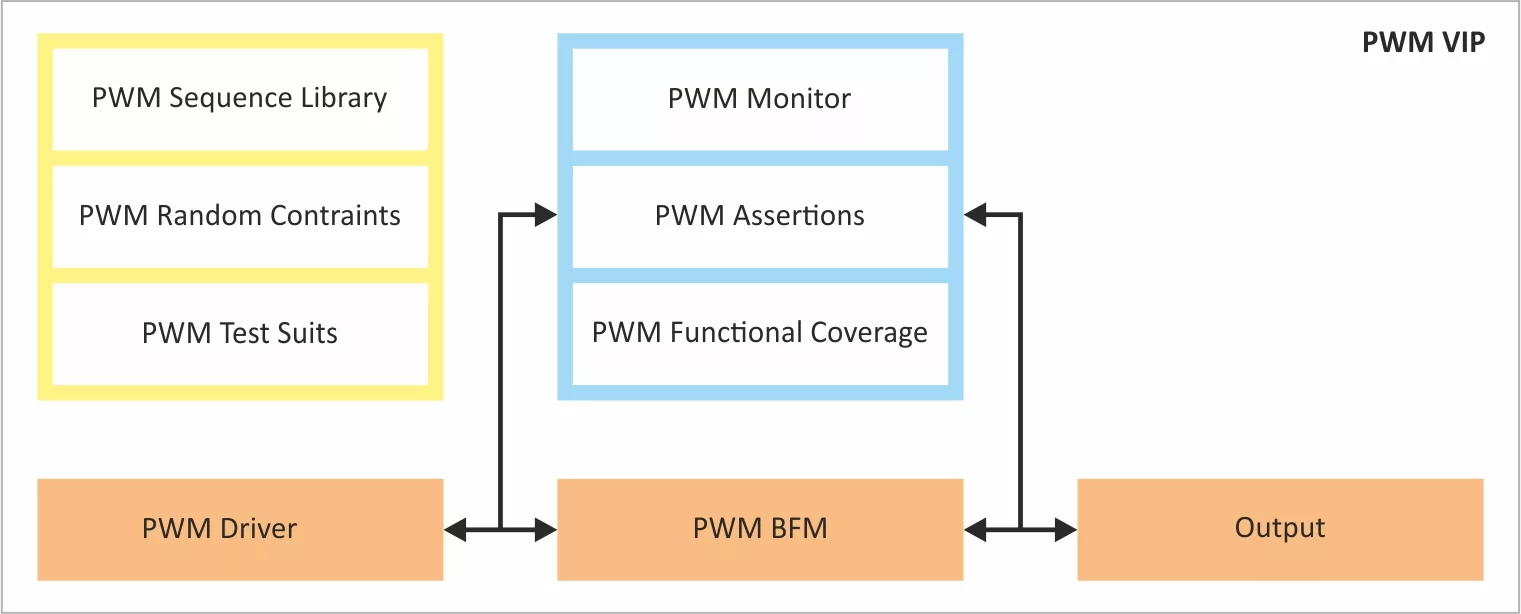

• PWM Driver/BFM/Agent
• PWM Monitor
• Testbench Configurations
• Test Suite (Available in Source code)
  • Basic and Directed Protocol Tests
  • Random Tests
  • Error Scenario Tests
  • Assertions & Cover Point Tests
• Integration Guide, User Manual, and Release Note
