PVT Monitor
PVT Sensor Subsystem
The agilePVT Sensor Subsystem is a low power integrated macro consisting of Process, Voltage, and Temperature sensors, and associ…
Overview
The agilePVT Sensor Subsystem is a low power integrated macro consisting of Process, Voltage, and Temperature sensors, and associated reference generator, for on-chip monitoring of a device's physical, environmental, and electrical characteristics. The monitoring of process, voltage and temperature variations are critical to optimize power and performance for modern SoCs/ASICs, especially for advanced node and FinFET processes.
Agile Analog designs are based on tried and tested architectures to ensure reliability and functionality. Our design methodology is programmatic, systematic and repeatable leading to analog IP that is more verifiable, more robust and more reliable. Our methodology also allows us to quickly re-target our IP to different process options. We support all the major foundries including TSMC, GlobalFoundries, Intel Foundry, Samsung Foundry, UMC and Other Foundries.
Key features
Temperature Sensor
- Measurement range: -40oC to +125oC
- Accuracy (Uncalibrated) +/-5°C
- Accuracy (Calibrated)
- -20°C to +100°C = +/-2°C
- 0°C to +50°C = +/-0.5°C
Voltage Sensor
- Accuracy (Uncalibrated) 50mV
- Accuracy (Calibrated) 10mV
Process Sensor
- In-chip monitoring of process variation
- Ring oscillator-based design to suit application requirements
- Scan-enabled to provide testability
agilePVT Subsytem
- Start-up time: Typ 20us
- Current consumption: Max 25uA
- Industry standard digital interface
- Fully integrated macro
- Standard AMBA APB interface

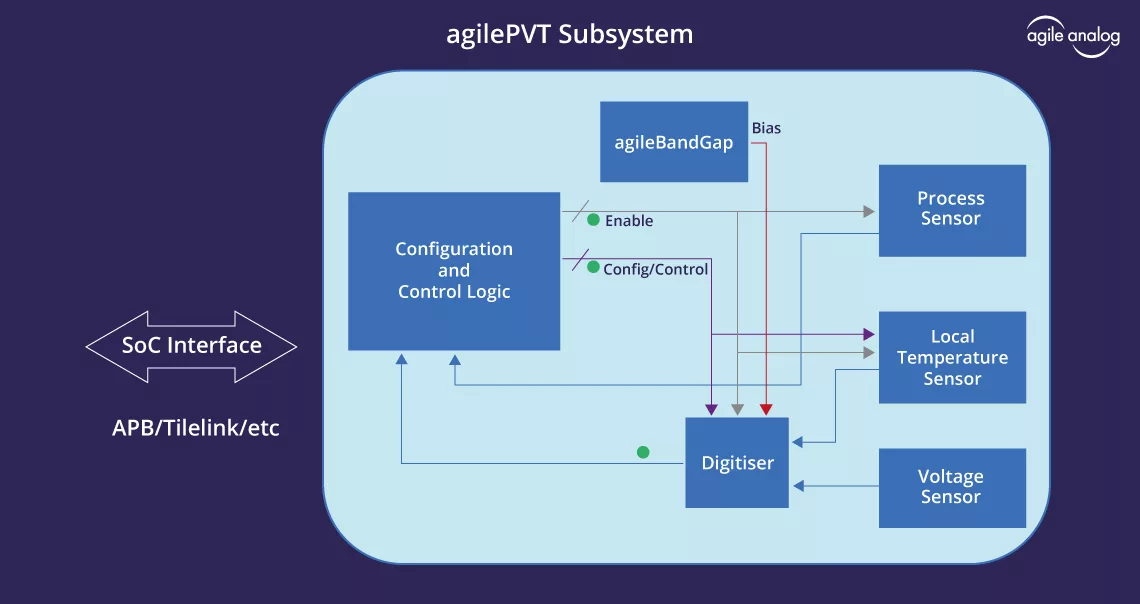

Block Diagram
agilePVT block diagram
Files
Note: some files may require an NDA depending on provider policy.
Specifications
Identity
Part Number
agilePVT
Vendor
Agile Analog
Provider
Agile Analog
HQ:
United Kingdom
Agile Analog is transforming the world of analog IP with Composa™, its innovative, configurable, multi-process analog IP technology. Headquartered in Cambridge, UK, with a growing number of partners and customers across the globe, Agile Analog has developed a unique way to automatically generate analog IP that meet the customer’s exact specifications on almost any process from any foundry. The company provides a wide and ever expanding selection of analog IP and subsystems for power management, data conversion, IC health and monitoring, security and always-on domains. Agile Analog's novel approach utilises tried and tested analog circuits within its Composa library to create customised and verified analog IP solutions. This reduces the time to market and increases quality, helping to accelerate innovation in semiconductor design.
