The core targets the lower-performance error correction applications using Bose–Chaudhuri–Hocquenghem codes (BCH codes) that prioritize small size over performance. The performance of the BCH1-1 core is approximately 1 bit of the codeword per clock (that is, the m = 9, n=511 word will be handled in slightly more than 511 clocks). For higher performance, larger cores are available in the BCH1 family.
The design is configurable in terms of data size and maximum number of corrected errors. The core, during instantiation, can support one of the Bose-Chaudhuri-Hocquenghem codes BCH(n,k,t)
BCH1-1 is very compact, the largest n = 511 t=16 k = 367 decoder occupies just 14K ASIC gates (encoders are much smaller, the companion BCH1-1-511-16E core uses about 2K gates).
During the encoding operation only k data bits need to be provided serially on the D input; n bits will be available on the serial output Q; therefore, the encoder will need to backpressure (pause) the input. During the decoding, n bits need to be provided on the input, k bits will be available on the output (since the throughput of the decoder is below 1 bit per clock, the decoder might also backpressure the input). The cores request the data on the input bus and indicates the valid data on the output bus via the full set of ready/valid handshaking signals.
The latency of the encoder core is fixed and very low (few clocks, actual number depends on the configuration). The decoder latency is slightly larger than the codeword size (as the entire codeword needs to be received serially for the decoding).
Architecture
The decoder core utilizes the classical BCH decoder architecture, with separate blocks for syndrome calculator, Berlekamp-Massey algorithm converting syndromes into a locator polynomial, followed by Chien search for roots.
Output of Chien search contains pulses at the roots of the polynomial (locations of errors) that are XORed with the delayed input data. If there are more than t errors in the input data, and Berlekamp-Massey algorithm detects the condition, the core outputs unmodified data and reports the non-correctable error.
Pin Description

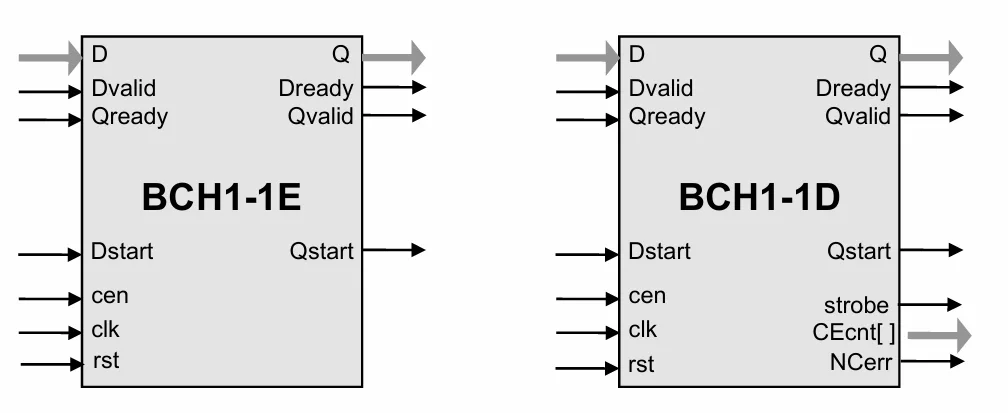

| Name | Type | Description |
| clk | Input | Core clock signal |
| cen | Input | Synchronous enable signal. When LOW the core ignores all its inputs and all its outputs must be ignored. |
| rst | Input | Synchronous enable signal. When LOW the core is placed into reset. |
| D | Input | Input Data. For encoder input, the data to be protected by the BCH code. For decoder input, the data to be protected followed by the “error correction” (“parity”) bits. |
| Q | Output | Output Data. For decoder output, the data to be protected by the BCH code. For encoder output, the data to be protected followed by the “error correction” (“parity”) bits. |
| Dvalid | Input | HIGH indicated to the core that the valid data is available on the D bus |
| Qvalid | Output | HIGH indicated to the external circuitry that the valid data is available on the Q bus |
| Dready | Output | HIGH indicates to the external circuitry that the core is ready for data on the D bus |
| Qready | Input | HIGH indicated to the core that the external circuitry can accept the data on the Q bus |
| Dstart | Input | A HIGH pulse indicates the start of the input data word (for the -E core) or codeword (for the -D core) |
| Qstart | Output | A HIGH pulse indicates the start of the output data word (for the -D core) or codeword (for the -E core) |
| strobe | Output | A HIGH level indicates the validity of the error flags |
| CEcnt | Output | A number if corrected errors. |
| NCerr | Output |
A non-correctable error flag. HIGH level indicates that non-correctable errors were found, the decoded data shall be ignored.
|
