Vendor: Mobiveil Inc. Category: Channel Coding

eMMC LDPC Encoder/Decoder

The eMMC LDPC Encoder/Decoder is an flash reliability solution engineered to maximize flash endurance and retention.

Contact Provider Request Datasheet

Overview

The eMMC LDPC Encoder/Decoder is an advanced flash reliability solution engineered to maximize flash endurance and retention. Featuring industry leading LDPC error correction technology, it delivers superior performance with the lowest power consumption and a compact footprint. Tailored for diverse applications, it supports ultra-low power requirements for mobile devices like smartphones and tablets, while meeting high-performance demands for enterprise SSDs, offering a scalable, customizable platform for a wide range of flash storage needs.

Specifications

  • Supports data rates ranging from 50 MB/s to 9.0 GB/s per LDPC instance.
  • Offers a scalable platform for developing custom LDPC cores tailored to specific applications.
  • Wide range of codeword sizes with maximum supported parity for diverse requirements.
  • High degree of parallelism optimized for high data-rate applications.
  • Compatible with multiple platforms, including eASIC, FPGA, and ASIC nodes from 40nm to 10nm.
  • Simultaneous support for multiple LDPC codes and parity configurations.
  • On-the-fly switching between LDPC codes for dynamic operational flexibility.
  • Patented technology ensures industry-leading reliability, performance, and low power for next-gen flash controllers.


Key features

  • Supports data rates from 50 MB/s to 9.0 GB/s.
  • Enables custom LDPC core development for specific requirements.
  • Wide range of codeword sizes.
  • Maximum supported parity.
  • High parallelism for high data-rate applications.
  • Multiple memory access options.
  • Supports eASIC, FPGA, and ASIC nodes.
  • Simultaneous parity support.
  • Concurrent support for multiple LDPC codes.
  • On-the-fly LDPC code switching.
  • Low area and power consumption.

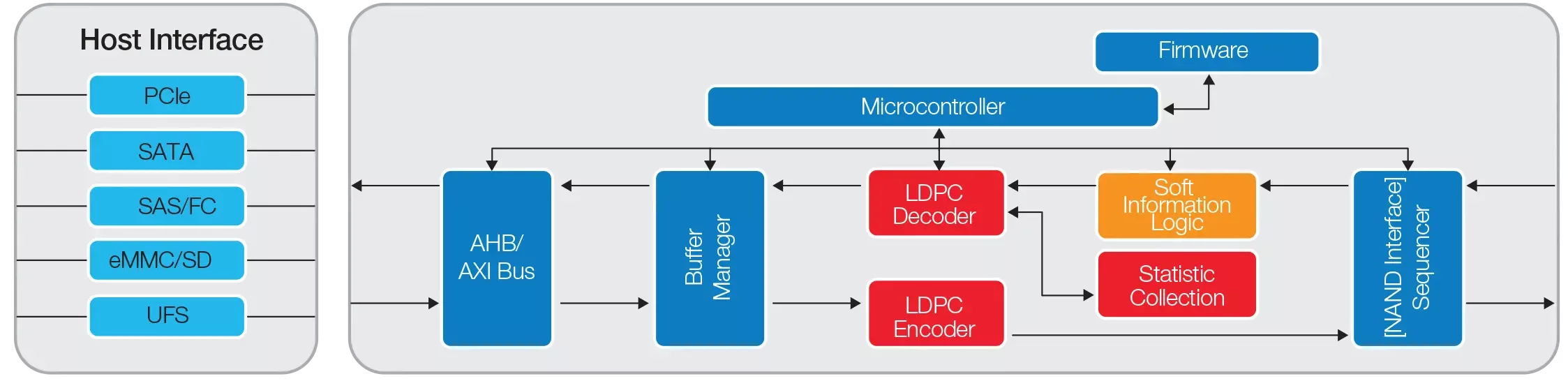

Block Diagram

eMMC LDPC block diagram

What’s Included?

  • Design Attributes
    • Source Code for LDPC Compiler.
    • Source Code for LDPC Matrix Generation Software.
    • FPGA based LLR generation reference design with MATLAB interface.
    • UVM verification environment with encoder, error injector, and decoder instantiate.
  • Licensing Options
    • LDPC.
    • NVMe (UNEX) + LDPC + Enterprise Flash Controller.
  • Documentation
    • IP User Guide.
    • Synthesis Guide.

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
eMMC LDPC
Vendor
Mobiveil Inc.

Provider

Mobiveil Inc.
HQ: USA
Mobiveil is a fast-growing Technology company that specializes in creation of Intellectual Properties, Application Platforms and solutions for Flash Storage, wired and wireless communications, IoT, Industrial and Robotics The Mobiveil team leverages decades of experience in delivering high-quality, production-proven, high-speed serial interconnect Silicon IP cores to the leading customers worldwide. With a highly motivated engineering team, dedicated integration support, flexible business models, strong industry presence through strategic alliances and key partnerships, Mobiveil solutions have added tremendous value to the customers in executing their marketing and engineering goals within budget and on time. Mobiveil is headquartered in the Silicon Valley with engineering development centers located in Milpitas, CA, Chennai, Bangalore, Hyderabad and Rajkot India, and sales offices and representatives located in US, Europe, Israel, Japan, Taiwan and People Republic of China. If you are interested in choosing Mobiveil as your IP partner and would like to understand what's unique about our IP offerings, receive our whitepaper - "What it takes to deliver a configurable and quality Silicon IP." To get your copy write to us at ip@mobiveil.com (We recommend you use your corporate email address please)
