MIPI DSI TX Controller

DSI transmitter controller for application Compliant with the MIPI® Alliance Specification for Display Serial Interface (DSIsm), …

Contact Provider Request Datasheet

Overview

DSI transmitter controller for application

Compliant with the MIPI® Alliance Specification for Display Serial Interface (DSIsm), the TX Controller IP for DSI provides the interface from a host device graphics controller to one or more display modules and includes an arbitration layer for arbitrating among the various data and command streams, a DSI protocol layer for protocol functions, and a lane management layer (LML) to distribute the DSI data stream across the active D-PHYsm lane modules.

Key features

  • Compliant with MIPI DSI v1.3.1, supporting Command Mode, Video Mode, and bi-directional low-power data transmission (LPDT)
  • Range of Display Formats Supported. Cadence Serial Display Interface (SDI), MIPI Display Pixel Interface (DPIsm), and Display Compression (DSC) input interface option
  • Programmable Test Video Generator with integration debug and test

Block Diagram

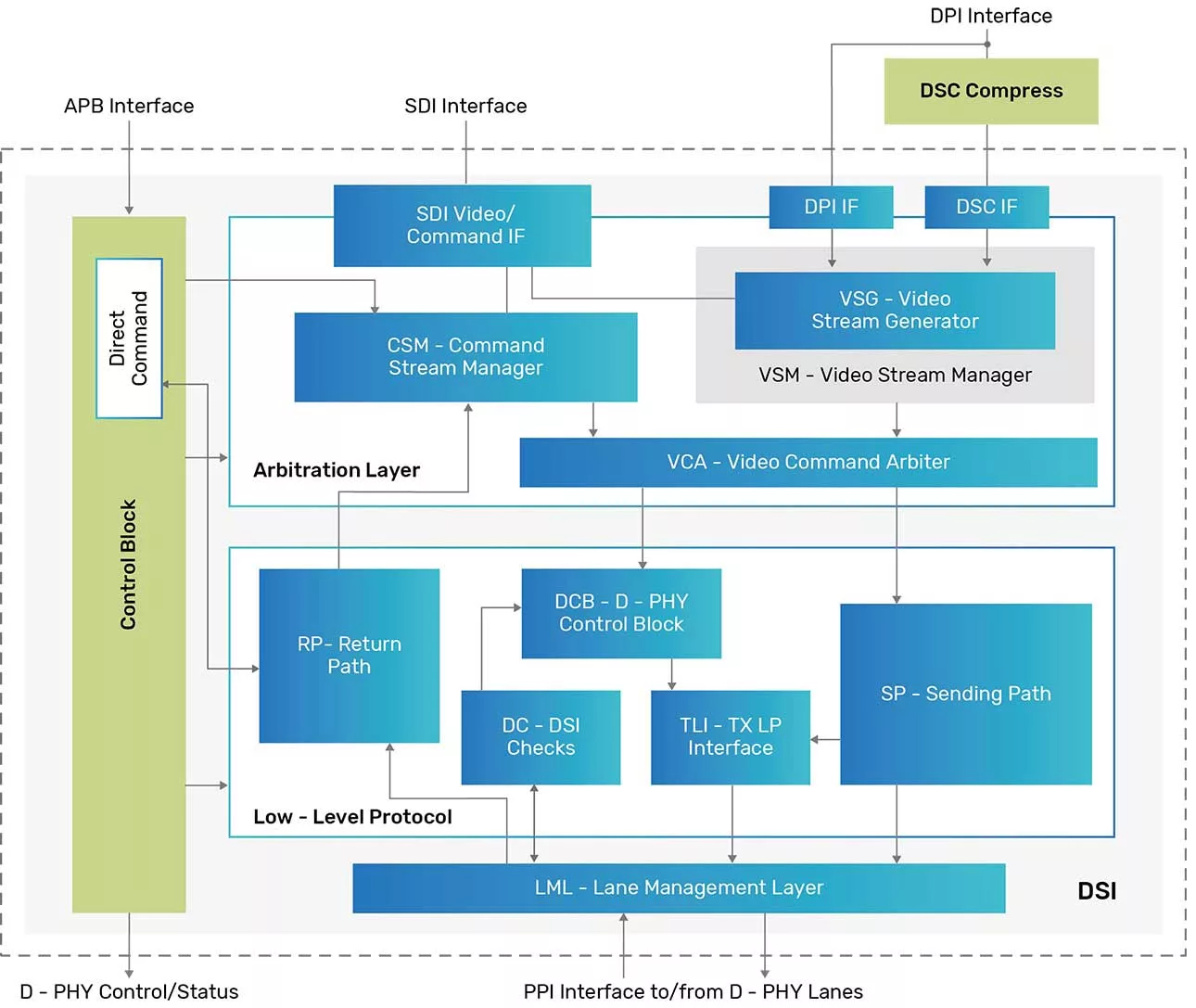

MIPI DSI TX Controller block diagram

Applications

  • Communications,
  • Consumer Electronics,
  • Data Processing,
  • Others

What’s Included?

  • Unencrypted, synthesizable Verilog HDL
  • Cadence Genus™ Synthesis Solution scripts
  • Documentation—Integration and User Guide, Release Notes
  • Demonstration testbench, using System Verilog and Cadence Verification IP (VIP)
  • Software driver
