MIPI CSI-2 RX Controller

CSI-2 receiver controller for application processor The Cadence® Receiver (RX) IP for MIPI® CSI-2sm is a fully verified, configur…

Contact Provider Request Datasheet

Overview

CSI-2 receiver controller for application processor

The Cadence® Receiver (RX) IP for MIPI® CSI-2sm is a fully verified, configurable, digital core that is compliant with the MIPI Alliance CSI-2 v2.1 specification. The Controller IP is responsible for handling and decoding CSI-2 protocol-based camera or other sensor data stream and managing the forwarding or unpacking of payload data to the pixel-stream interfaces. It is an ideal solution to provide a high-speed serial interface between an application or image processor and MIPI CSI-2 compliant camera sensor.

Key features

  • Standards Compliant. CSI-2 v2.1, with 8-bit and 16-bit PPI data width and links with 1, 2, 4, or 8 data lanes
  • Provides up to 8 Independent Stream Output Interfaces, allowing a highly configurable range of options, including multiple pixel modes, various buffering modes, packed data mode, Data Type selection, and Virtual Channel or Data Type interleaving

Block Diagram

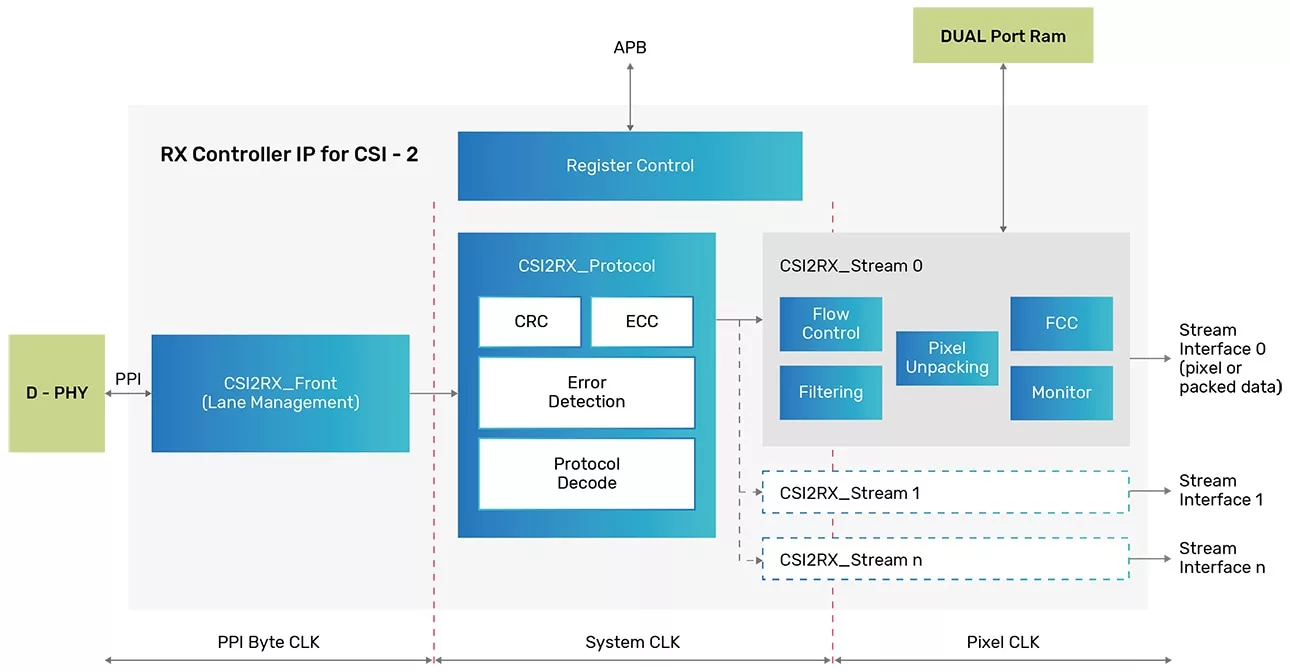

MIPI CSI-2 RX Controller for v2.1 block diagram

Applications

  • Automotive,
  • Communications,
  • Consumer Electronics,
  • Data Processing,
  • Industrial and Medical,
  • Military/Civil Aerospace,
  • Others

What’s Included?

  • Unencrypted, synthesizable Verilog HDL
  • Cadence Genus™ Synthesis Solution scripts
  • Documentation-Integration and User Guide, Release Notes
  • Sample verification testbench with integrated Cadence Verification IP (VIP)
  • Software Driver

Files

Product Sheet Download
