Vendor: VEGA Semiconductor Category: Single-Protocol PHY

Mini-LVDS TX and RX PHY

The T180BCDLVDSV1 IP is a mini-LVDS TX and RX PHY based on TSMC 180nm BCD process.

Contact Provider Request Datasheet
TSMC 180nm BCDG2 Available on request View all specifications

Overview

The T180BCDLVDSV1 IP is a mini-LVDS TX and RX PHY based on TSMC 180nm BCD process. It is suitable for the interface between the timing controller and column drivers.

Key features

  • Process: TSMC 180nm 1.8V/5V 1P6M BCD process
  • Area: 1750um x 850um
  • RX
    • Total 4 RX data lanes and two RX clock lanes
    • Input data rate: 56Mbps ~ 336Mbps
    • 1:56 serial to parallel ratio
    • Input voltage range: 0V to 1.4V
    • Input differential threshold: +/- 100mV
    • One lane current consumption: AVDD_RX: 0.6mA, AVDD18:1.4mA
    • One lane leakage< 1uA
  • TX
    • Total 4 TX data lanes and two TX clock lanes
    • Output data rate: 56Mbps ~ 336Mbps
    • 56:1 parallel to serial ratio
    • Output common mode voltage: 0.6V to 1.4V
    • Adjustable Tx Clock output driving(x1,x2,x3,x5): 1.75mA/3.5 mA/5.25 mA/8.75 mA
    • Tri-state and power off for individual Tx Data/Clock output
    • One lane current consumption: AVDD_TX(x1): 2.6mA, AVDD18:0.2mA
    • One lane leakage< 5uA
  • Operated Ambient Temperature: Ta = -40 ~ 85°C
  • Operated Junction Temperature: Tj = -40~125°C

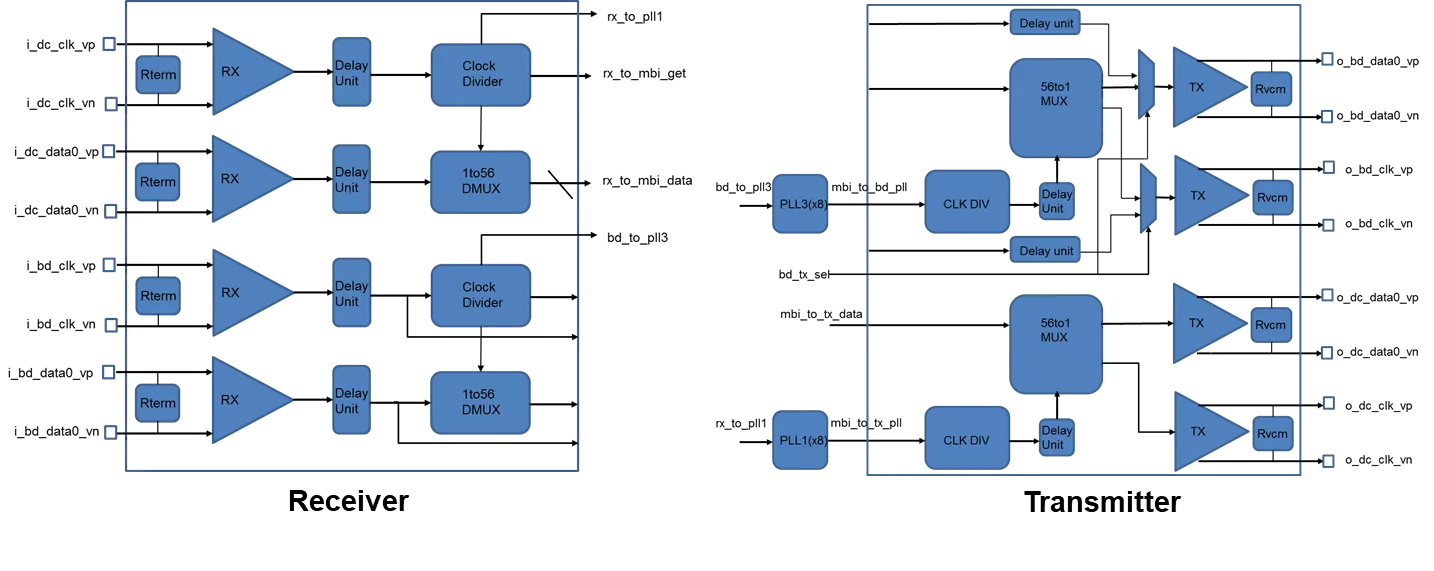

Block Diagram

T180BCDLVDSV1 block diagram

Silicon Options

Foundry Node Process Maturity
TSMC 180nm BCDG2 Available on request

Specifications

Identity

Part Number
T180BCDLVDSV1
Vendor
VEGA Semiconductor

Provider

VEGA Semiconductor
HQ: Taiwan
VEGA SEMICONDUCTOR Corp. is a leading fabless ASIC design company providing Analog and Mixed-Signal IP Cores.
Contact VEGA Semiconductor
