Vendor: Analog Bits Inc. Category: PLL

Low Power Frac-N PLL on GLOBALFOUNDRIES 40LP

A programmable on-the-fly Fractional-N PLL is required to lock to an incoming clock source and produce an output clock.

Contact Provider Request Datasheet
GlobalFoundries 40nm LP View all specifications

Overview

A programmable on-the-fly Fractional-N PLL is required to lock to an incoming clock source and produce an output clock. The generated clock needs to be locked to the input source but maintain a high-degree of precision, hence an on-the-fly programmable fractional feedback divider is required (“on the fly” meaning the frequency transition and re-obtaining lock process for small frequency adjustment is glitch free and contains limited frequency over/undershoot).

The Fractional-N PLL macro is implemented in Analog Bits’ proprietary architecture that uses core and IO devices. The PLL resides inside the IO ring that includes two analog power supply pads, occupying no core area. In order to minimize noise coupling and maximize ease of use, the PLL incorporates a proprietary ESD structure, which is proven in several generations of processes. Eliminating band-gaps and integrating all on-chip components such as capacitors and ESD structures, helps the jitter performance significantly and reduces stand-by power. The Fractional-N PLL macro fits into any standard IO pad pitch and can be implemented in staggered and in-line IO configurations.

PLL Operational Range Description Symbol Min Typ Max Units Input Frequency FREF 5 60 MHz Post-Divide Reference frequency FPFD 7 200 MHz VCO Frequency FVCO 2400 MHz Output Frequency FOUT 20 1200 MHz Output Duty Cycle tDO 45 55 % Total area of macro (excluding bond pad area) A 0.024 sq. mm May vary depending on size of IO slots Chip core area requirement CA 0 sq. mm Total Power IDD 3 mA Operational Voltage (Digital) VDIG 0.99 1.1 1.21 V Operational Voltage (Analog) VANA 3.0 3.3 3.6 V Operational Temperature TOP -40C 25 175 C Table 1: PLL Operational Range

Key features

  • Electrically Programmable PLL for multiple applications including Automotive Grade 0 at 175C operation
  • Ability to generate precise system clocks synchronized to track remote sources
  • Very fine precision: near 1 part per billion resolution
  • Fully integrated 32-bit datapath (8-bit integer plus 24-bit fractional)
  • Implemented with Analog Bits’ proprietary architecture
  • Fully integrated inside industry standard or other customized IO ring
  • Occupies zero core area
  • Low power consumption
  • Spread Spectrum tracking capability
  • Requires no additional on-chip components or band-gaps, minimizing power consumption

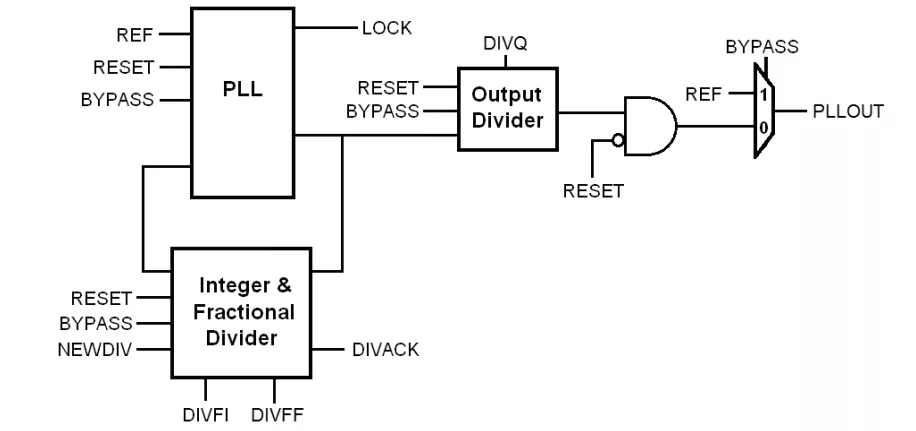

Block Diagram

Low Power Frac-N PLL on GLOBALFOUNDRIES 40LP block diagram

Silicon Options

Foundry Node Process Maturity
GlobalFoundries 40nm LP —

Specifications

Identity

Part Number
Low Power Frac-N PLL on GLOBALFOUNDRIES 40LP
Vendor
Analog Bits Inc.
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Analog Bits Inc.
HQ: USA
Analog Bits develops, delivers and supports industry-leading, mixed signal IP solutions. The current product portfolio includes energy-efficient and low-area SERDES, PVT sensors, ultralow-jitter clocks, memory interfaces and I/O’s, available on every mainstream manufacturing process. Customers’ applications span a wide range including: high-volume consumer products, energy-efficient servers and advanced telecommunications equipment - all leveraging Analog Bits’ highly differentiated IP products. Founded in 1995, Analog Bits, Inc. has become the leading supplier of mixed-signal IP with a reputation for easy and reliable integration into advanced SOCs. Our products include precision clocking macros such as PLLs & DLLs, programmable interconnect solutions such as multi-protocol SERDES and programmable I/O’s as well as specialized memories such as high-speed SRAMs and TCAMs. With billions of IP cores fabricated in customer silicon, from 0.35-micron to 14-nm processes, Analog Bits has an outstanding heritage of "first-time-working” with foundries and IDMs.
