ISO/IEC 14443 Verification IP

The ISO/IEC 14443 Verification IP offers a streamlined and efficient solution for verifying System-on-Chip (SoC) and IP designs t…

Contact Provider Request Datasheet
Verification IP View all specifications

Overview

The ISO/IEC 14443 Verification IP offers a streamlined and efficient solution for verifying System-on-Chip (SoC) and IP designs that incorporate contactless communication. This VIP provides a comprehensive environment for verifying devices acting as either a Proximity Coupling Device (PCD) or a Proximity Integrated Circuit Card (PICC). Fully compliant with the complete ISO/IEC 14443 standard (Parts 1-4), our VIP is a lightweight, plug-and-play solution designed to ensure rigorous verification, minimize design cycle time, and accelerate your time-to-market.

Key features

  • Fully compliant with ISO/IEC 14443 Parts 1, 2, 3, and 4.
  • Complete, configurable functionality for both PCD (reader) and PICC (card) roles.
  • Supports both Type A and Type B communication protocols.
  • Support for all 6 PICC classes with configurable antenna dimensions
  • Supports all standard data rates: 106 kbps, 212 kbps, 424 kbps, and 848 kbps.
  • Robust verification of the complete state machine for both Type A and Type B PICCs, including POWER-OFF, IDLE, READY, ACTIVE, and HALT states.
  • Comprehensive testing of Type A anticollision using the bit-collision based binary tree search algorithm.
  • Full support for Type B anticollision using the slotted Aloha-based method.
  • Verifies all initialization commands including REQA, WUPA, REQB, WUPB, ANTICOLLISION, SELECT, and HLTA/HLTB
  • Complete support for the T=CL transmission protocol, including protocol activation (RATS, ATS, PPS).
  • Verifies all block types:
    • I-blocks (Information)
    • R-blocks (Receive Ready for ACK/NAK)
    • S-blocks (Supervisory for DESELECT and WTX).
  • Supports advanced protocol mechanisms including data block Chaining, Multi-Activation, and Waiting Time Extension (WTX).
  • Verifies correct block numbering and flow control rules.
  • Extensive Error Injection: Provides a rich set of error injection capabilities at both the physical and protocol layers, including:
    • CRC and Parity errors
    • Invalid command and block formats
    • Protocol and state transition violations
    • Frame timing errors (FWT, SFGT).
  • Comprehensive Monitoring: Monitors, detects, and notifies the testbench of all significant events, including transactions, protocol warnings, timing violations, and errors.
  • Randomization: Supports constrained randomization of all protocol fields, timings, and data payloads for comprehensive scenario generation.
  • Callbacks: User-configurable callbacks in the driver, receiver, and monitor for customized data processing and testbench interaction.

Block Diagram

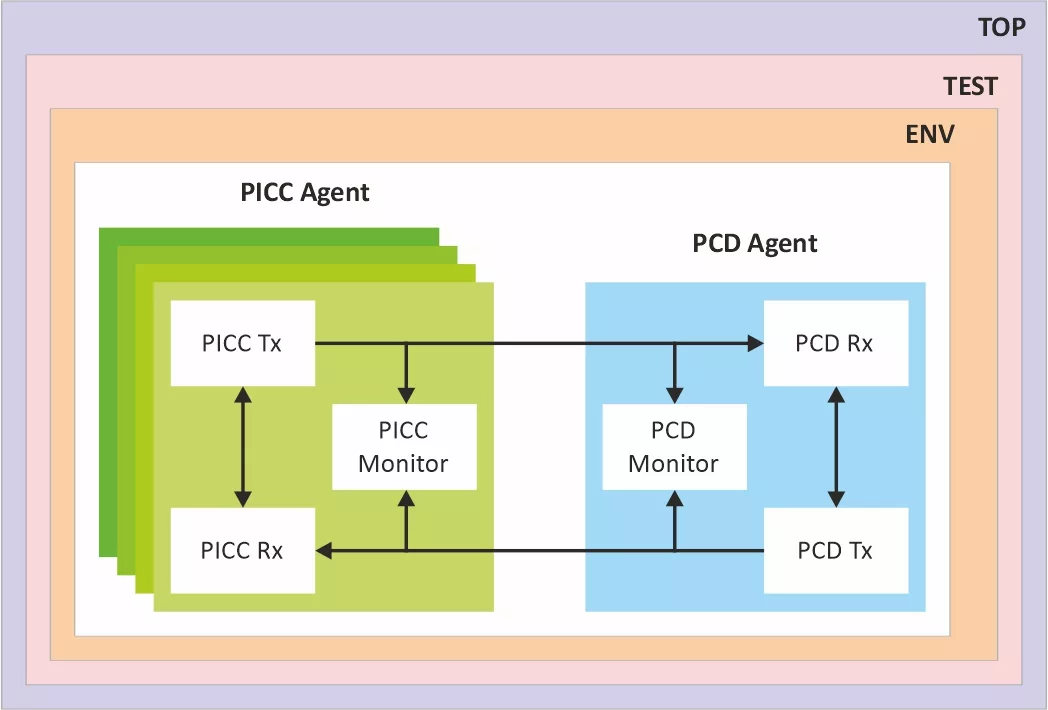

ISO/IEC 14443 block diagram

Benefits

  • Available in native SystemVerilog (UVM/OVM/VMM) and Verilog
  • Unique development methodology to ensure highest level of quality
  • Availability of Compliance & Regression Test Suites
  • 24X5 customer support
  • Unique and customizable licensing models
  • Exhaustive set of assertions and cover points with connectivity example for all the components
  • Consistency of interface, installation, operation and documentation across all our VIPs
  •  Provide complete solution and easy integration in IP and SoC environment.

What’s Included?

  • ISO-14443 Tx/Rx/ Monitor.
  • Testbench Configurations.
  • Test Suite (Available in Source code)
    • Basic and Directed Protocol Tests
    • Random Tests & Error Scenario Tests
    • Assertions & Functional Coverage Tests
  • Integration Guide, User Manual and Release Notes
