UHF RFID EPC Gen2 physical interface

130GF _G2PHY_02 is the IP intended for use in passive UHF transponder applications.

Contact Provider Request Datasheet
GlobalFoundries 130nm BCD Pre-Silicon View all specifications

Overview

130GF _G2PHY_02 is the IP intended for use in passive UHF transponder applications. IP derives its operating power from an RF electromagnetic field generated by a reader, which is received and rectified. The maximum output voltage of the rectifier (VRECT) does not exceed the threshold value of the DC limiter. Also, the IP can operate in battery assisted mode with improved sensitivity. The IP contains two UHFAp and UHFAn antenna pads. The IP sends the answer back to the reader using a backscatter modulation technique. G2PHY IP provides a fast and flexible anti-collision protocol based on internal random number generator according to EPC standard. G2PHY IP supports all EPC C1 G2 mandatory commands. Short-time memory block provides 4-bit storage with persistence values according to EPC C1 G2 standard. The operation of the IP-block must be carried out in conjunction with external non-volatile memory (130GF_EEPROM_05 IP). Implemented the ability to access external memory for a third-party user (for example, through the HF NFC interface) according to the "First in and First Served" principle.

Key features

  • Global Foundries Embedded EEPROM 130nm
  • Operating temperature range -40…+85 °C
  • 2 operation modes: Passive mode and Battery assisted passive (BAP) mode
  • Operating frequency 860 - 960 MHz
  • EPC Class 1 Generation 2 compliant
  • Two pads RF operation functionality
  • Small area 0.192 mm2

Block Diagram

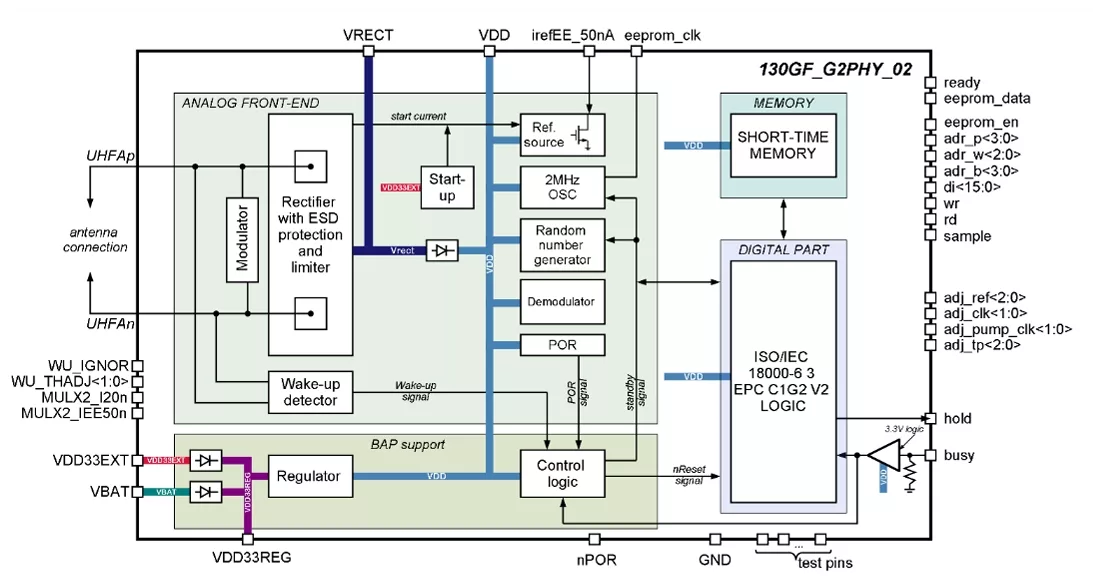

130GF_G2PHY_02 block diagram

Applications

  • Protection of goods against counterfeiting
  • Supply chain management and logistics
  • Airline baggage handling
  • Mail and parcel delivery
  • Automobile billing systems
  • Asset tagging

What’s Included?

  • Datasheet
  • Layout View (GDSII)
  • Evaluation kit based on packaged IC
  • Characterization Report
  • Behavioral Model
  • SPICE netlist (.cdl)
  • Integration Support
