Vendor: Arm Ltd. Category: ISP Image Signal Processor

Image signal processor to advance vision systems for IoT and embedded markets

The Arm Mali-C55 image signal processor (ISP) is designed to support IoT and embedded applications where energy-efficient, high-q…

Contact Provider Request Datasheet

Overview

The Arm Mali-C55 image signal processor (ISP) is designed to support IoT and embedded applications where energy-efficient, high-quality image output is required, such as smart cameras for consumer and commercial security, hobby drones, and entry-level AR.

Mali-C55 delivers upgraded image quality features with higher throughput, lower power consumption, and a significantly smaller silicon footprint than its predecessor. Mali-C55 brings high-performance image signal processing to battery powered devices, and enhanced performance to wired devices and established camera systems.

Mali-C55 enables new levels of on-device processing as the output from the ISP can be sent directly to the ML accelerator. ML accelerators can take advantage of neural networks for denoising techniques to further enhance image quality.

The Mali-C55 ISP is a complete solution that includes hardware IP, software drivers, 3A libraries (auto-exposure, auto-white balance, auto-focus), and a full set of tuning and calibration tools. Mali-C55 ISP will be available with Arm Total Solutions for IoT in the future.


Key features

  • Camera support:
    • Multi-sensor interface with up to 20-bit linear video input
    • Up to 8 independent camera sources of max resolution 48 Megapixels / 8K (8192 x 6144)
  • Sensor type support:
    • RGGB
  • Channel support:
    • Multi-context processing
  • Processing performance:
    • Up to 1.2 Gigapixels/second throughput
  • Configurations:
    • IP configurable for image quality and area optimization

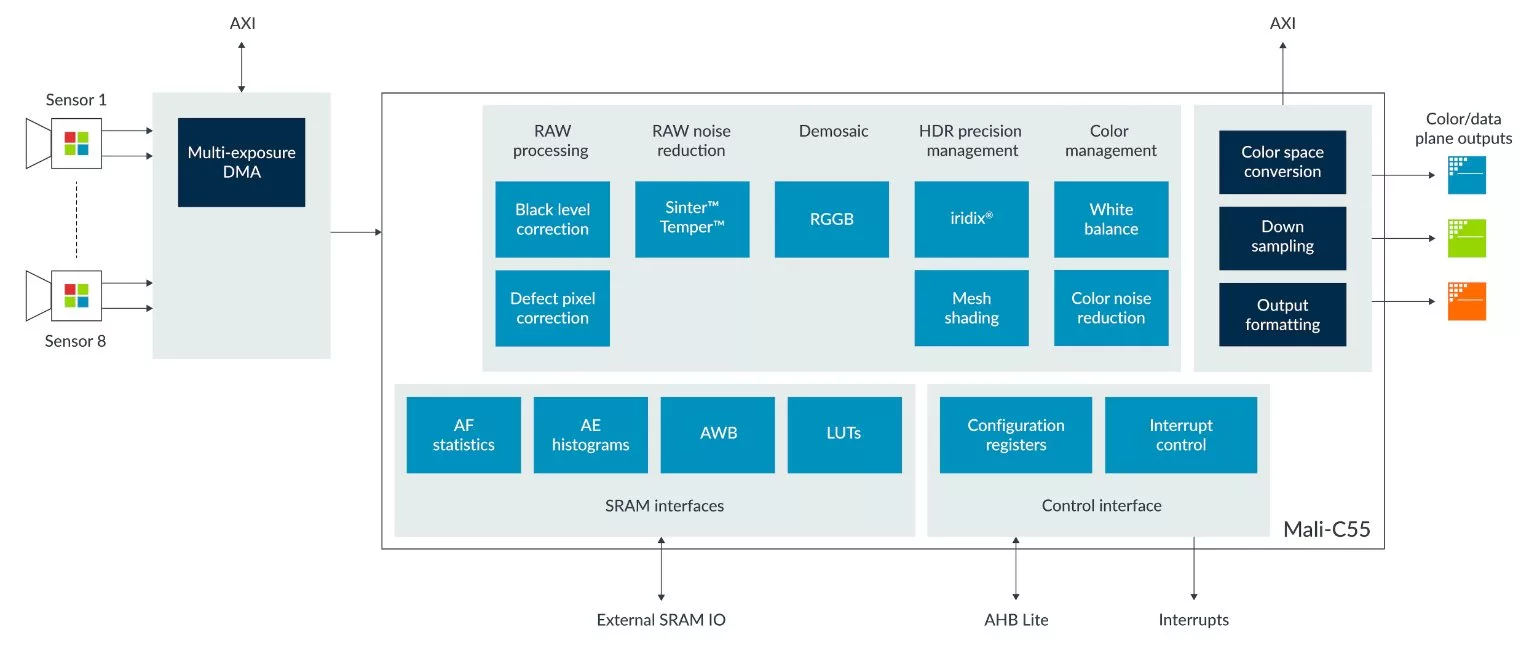

Block Diagram

Mali-C55 block diagram

Specifications

Identity

Part Number
Mali-C55
Vendor
Arm Ltd.
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Arm Ltd.
HQ: Great Britain
Arm technology is defining the future of computing. Our energy-efficient processor designs and software platforms have enabled advanced computing in more than 240 billion chips and our technologies securely power products from the sensor to the smartphone and the supercomputer. Together with 1,000+ technology partners, we are enabling artificial intelligence to work everywhere, and in cybersecurity, we are delivering the foundation for trust in the digital world – from chip to cloud. The future is being built on Arm.
Contact Arm Ltd.
