Vendor: Shikino High-Tech CO.,LTD Category: ISP Image Signal Processor

Image Signal Processor IP Core

This is an IP core for the ISP (Image Signal Processor) that processes image data input from the image sensor.

Contact Provider Request Datasheet

Overview

This is an IP core for the ISP (Image Signal Processor) that processes image data input from the image sensor.

Key features

  • Compatible with Bayer filters on image sensors
  • Implementable on both ASIC and FPGA
  • Input/output I/F conforms to AMBA
  • Maximum image size: 4K x 2K pixels
  • Supports RGB, YCbCr formats (No sensor correction)
  • Equipped with the following functions
    • Sensor correction：Black level correction , Demosaic , Color correction
    • Automatic correction：AWB(Auto White Balance) ,  AE (Auto Exposure)
    • Image correction: Tone curve correction, Gamma correction  Color space conversion

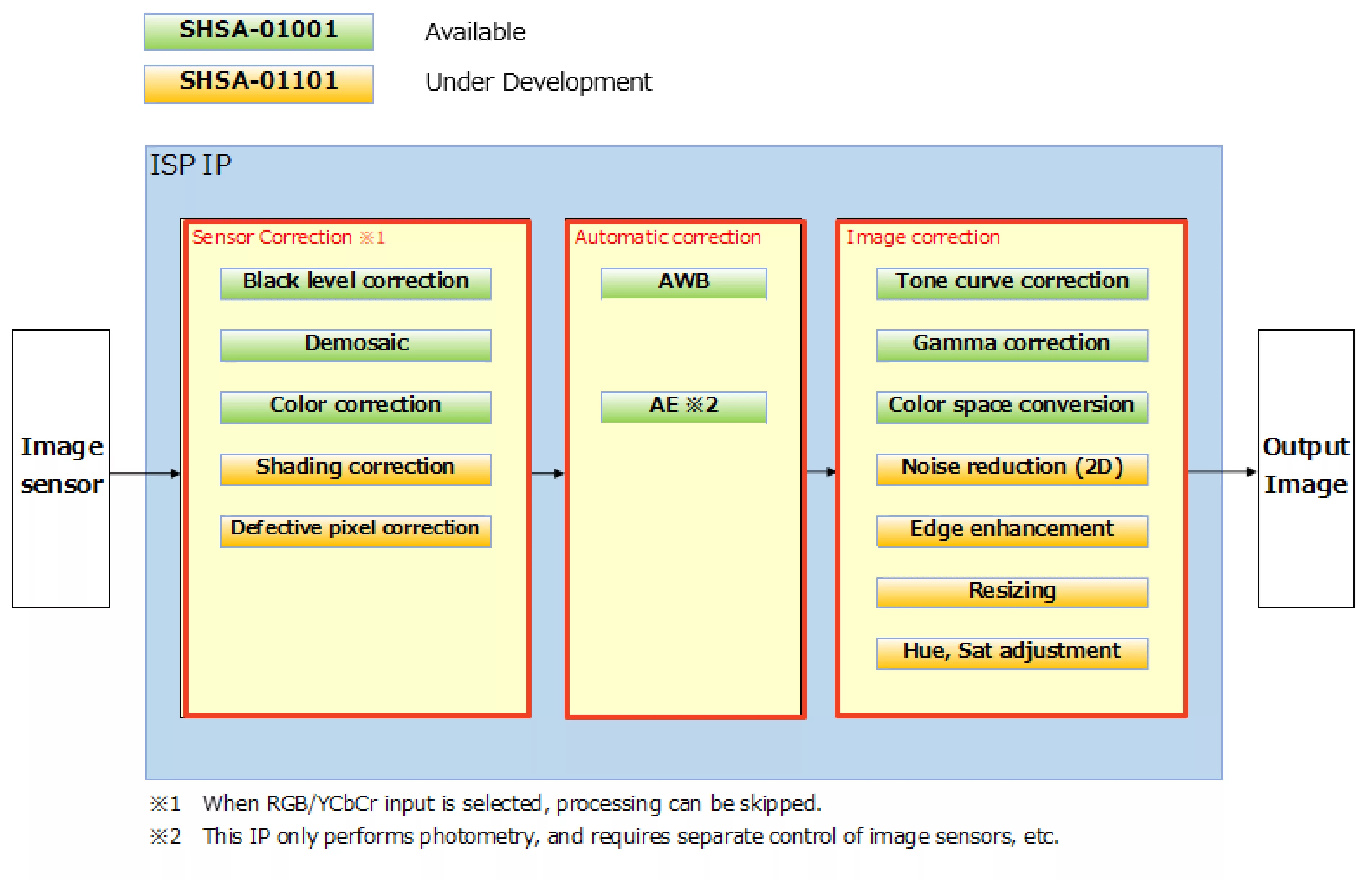

Block Diagram

SHSA-01001 block diagram

Specifications

Identity

Part Number
SHSA-01001
Vendor
Shikino High-Tech CO.,LTD

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Shikino High-Tech CO.,LTD
HQ: Japan
Shikino High-Tech has created new value in the field of electronics, rooted in the Shikino spirit of nothing ventured, nothing gained. We continue to make progress with our exemplary design and development capabilities in those areas of technology which are our pride, including our module development centered around camera systems and image processing modules, design & development in the image processing sector based around our own JPEG IP technology, and the design and development of semi-conductor testing equipment such as LSI test development which contributes to the prompt startup of production lines and burn-in devices which guarantee total burn-in.
