Vendor: StarFive Category: CPU

High Performance 64-bit RISC-V Processor

Dubhe-90 is a high-performance commercial RISC-V CPU Core IP that is deliverable.

Contact Provider Request Datasheet

Overview

Dubhe-90 is a high-performance commercial RISC-V CPU Core IP that is deliverable. It adopts an 11+ stage and 5-issue pipeline, superscalar, and deep out-of-order execution, and supports standard RISC-V RV64GCBH extensions. It is optimized for the highest performance and frequency, and its SPECint2006 score achieves 9.4/GHz. Dubhe-90 is pre-integrated and verified to ease SoC integration and development with options of single-core, dual-core, or quad-core in a single cluster with memory coherency. It can be widely applied in high-performance computing scenarios and devices, such as data centers, PC, mobile devices, high-performance network communications, and machine learning.

Key features

  • SPECint2006:9.4/GHz
  • Dhystone:6.5/MHz（Legal）
  • RV64GCBH
  • 11+ stage, 5-issue pipeline
  • Superscalar, Deep Out-of-Order Execution
  • Multi-Core Cache Coherence Support

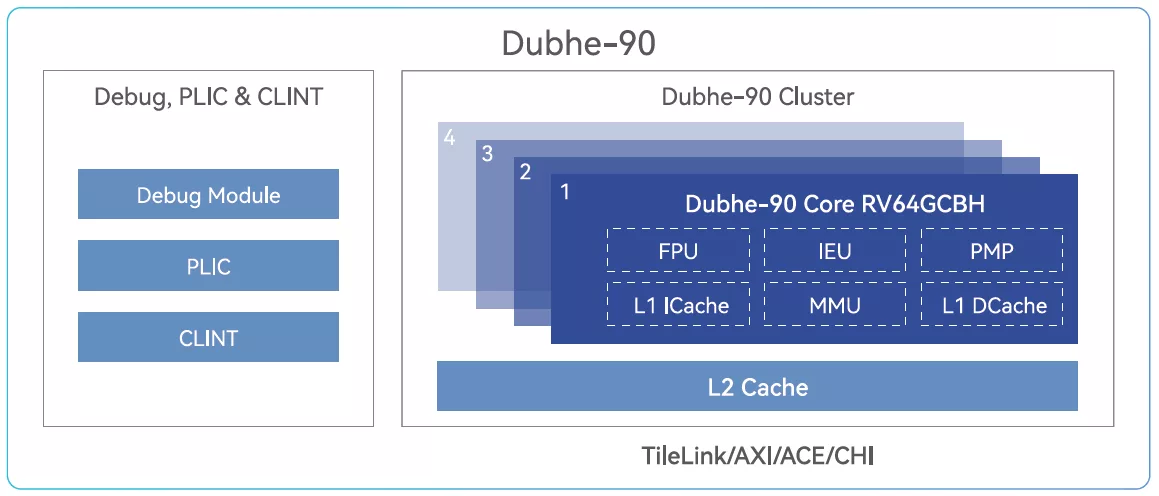

Block Diagram

Dubhe-90 block diagram

Applications

Edge / Cloud Data Centers

  • Edge Cloud Computing
  • SmartNIC and Data Processing Unit (DPU)
  • Enterprise Computational Storage
  • Baseboard Management Controller (BMC)

Communication / Networking

  • 5G Infrastructure and Base Station
  • Wireless Access Point
  • Enterprise Switch and Firewall / NGFW
  • Vehicle-to-Everything (V2X) Communication

Artificial Intelligence (AI) / Machine Learning (ML)

  • Autonomous Vehicles (AV) / Advanced Driver Assistance Systems (ADAS)
  • In-Vehicle Infotainment (IVI) / Cluster / Head Up Display (HUD)
  • Robots / Drones / Industrial Control
  • Computer Vision / AR / VR / MR

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
Dubhe-90
Vendor
StarFive

Provider

StarFive
HQ: China
Contact StarFive
