High Bandwidth Differential Output Operational Amplifier
The WEAOPDHB18PI18RO12M22G is a High Bandwidth two stage differential pmos input Operational Amplifier with common mode feedback …
Overview
The WEAOPDHB18PI18RO12M22G is a High Bandwidth two stage differential pmos input Operational Amplifier with common mode feedback pmos source follower driven outputs.
Key features
- Power Supply: 1.8 V
- Open loop gain: 74 dB
- PSRR: 78 dB@ 1 KHz
- 31 dB@ 1 MHz
- Noise @100 KHz: -149 dBV/sqrt (Hz)
- 33 nV/sqrt (Hz)
- Noise @1 MHz: -158 dBV/sqrt (Hz)
- 12 nV/sqrt (Hz)
- Offset:5.3 uV
- Bandwidth: 1.58 MHz
- Output impedance: 18 KOhm
- Power Consumption: 1.7 mW
- Slew rate (Cload 5pF): 355 V/us
- Distortion SFDR @1 MHz
- (Vin 500m Vp-p): -41 dB
- Area: 111 um x 70 um
- Process 22FDX
- Metal Option 19
Block Diagram

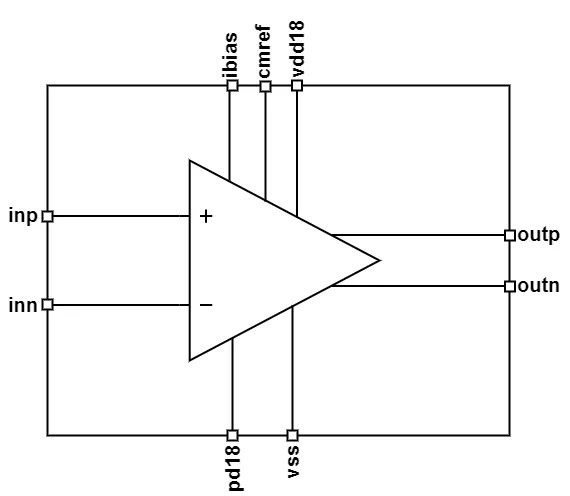

WEAOPDHB18PI18RO12M22G block diagram
