Vendor: Zipcores Electronic Systems Engineering S.L. Category: Video Processing

Digital Video Scaler

Digital video up/down scaler permits independent horizontal and vertical scaling to generate any desired resolution or aspect rat…

Contact Provider Request Datasheet

Overview

Digital video up/down scaler permits independent horizontal and vertical scaling to generate any desired resolution or aspect ratio. Uses a 5x5 FIR polyphase filter with 16 phases to generate a studio-quality output. No frame buffer or external memory required.

Key features

  •  RGB or YCbCr video in/out
  •  Independent vertical and horizontal scaling
  •  Support for different RGB channel widths
  •  Best suited to video resolutions up to full HD (1920x1080)
  •  Real-time programmable scaling parameters
  •  5x5-tap polyphase FIR filter (16 phases)
  •  Fully pipelined architecture with simple flow-control
  •  ABMA / AXI4-stream compatible interfaces
  •  No frame buffer or external memory required
  •  Small area footprint - minimal RAM resource
  •  Support for 350MHz+ operation on basic FPGA devices

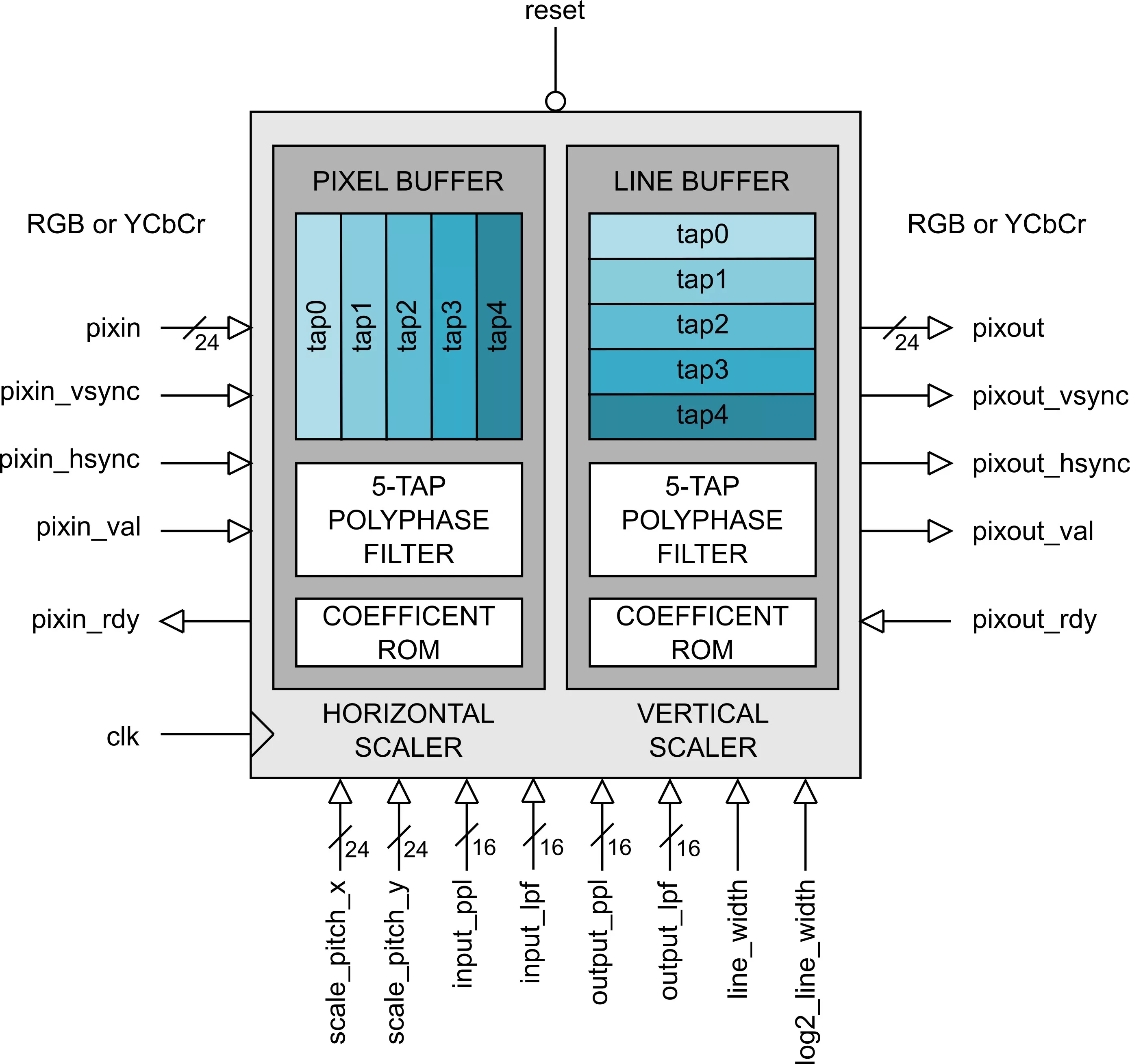

Block Diagram

XY_SCALER block diagram

Benefits

  • Technology independent soft IP Core
  • Suitable for FPGA, SoC and ASIC
  • Supplied as human-readable source code
  • One-time license fee with unlimited use
  • Field tested and market proven
  • Any custom modification on request

Applications

  • Studio quality video scaling
  • Video conferencing
  • CCTV applications
  • Broadcast video equipment
  • Picture-in-picture (PiP), Picture-by-picture (PbP) and digital zoom
  • Video scaling for flat panel displays, image sensors and cameras,   portable devices, video games/consoles, video format converters,   set-top boxes, smart TVs etc.

What’s Included?

  • VHDL source-code (or Verilog on request)
  • Simulation test bench
  • Examples and scripts
  • Full pdf datasheet
  • One-to-one technical support
  • One years warranty and maintenance

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
XY_SCALER
Vendor
Zipcores Electronic Systems Engineering S.L.
Type
Silicon IP

Provider

Zipcores Electronic Systems Engineering S.L.
HQ: Spain
Zipcores design and sell IP Cores for implementation on all semiconductor devices. Founded in 2008, we are a team of experienced Engineers with a broad knowledge of digital hardware design spanning various fields. Our specific areas of expertise include Digital Video, DSP, Digital Modulation and high-speed interfaces. We offer a wide range of IP Cores for a variety of applications from basic building blocks to more complex systems. Our cores are supplied as clear readable VHDL or Verilog source-code and are synthesizable across multiple technologies - whether it be FPGA, ASIC or SoC.
