Digital Capacitive Sensor Interface

The MVCT017 is a programmable capacitance-to-digital converter interface, designed to be easily integrated with capacitive sensor…

Contact Provider Request Datasheet

Overview

The MVCT017 is a programmable capacitance-to-digital converter interface, designed to be easily integrated with capacitive sensors. The chip features very fast measurement times, low operating power, and very low standby currents, making it very suitable for low-power and portable applications. Also, the ASIC includes a high-accuracy temperature sensor and a DAC to convert the calibrated measurements into an analog voltage that is proportional to the supply voltage.

Temperature Range -40 to 125°C
Power Supply Voltage 1.71 to 3.6V
Input Capacitance Range 2 to 7pF
Temperature RMS Noise 0.01°C @ 14-Bit res.
Capacitance RMS Noise @ 1pF Input Range 0.4fF @ 14-Bit res.
Average Current for One Measurement/sec 0.6µA @14-Bit Temp. & Capacitance meas.
Ultra-low Standby Current 10nA
Outputs Digital I2C & Analog

Key features

  • Trimmable input capacitance range, for flexibility and dynamic range optimization
  • Internal high-accuracy and low-drift temperature sensor
  • On-chip processing engine for linearization and temperature compensation –provides end user with a fully calibrated output
  • Programmable resolution settings for each measurement mode:
    • 8 to 14-Bit for the temperature sensor and the capacitance interface
  • Update mode with programmable update rates from 5ms to 5s
  • Calibrated analog output features, for both the capacitance and temperature sensors
  • Ultra-low operating and sleep currents

Block Diagram

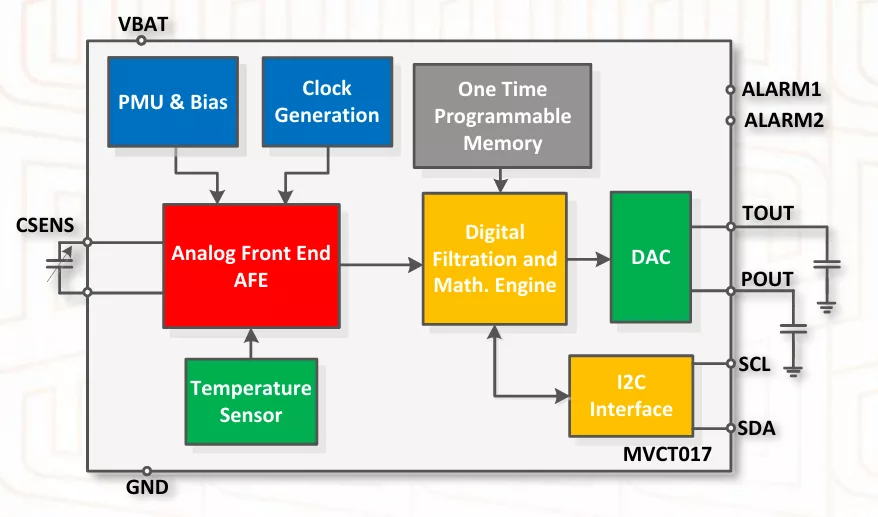

MVCT017 block diagram

Applications

  • Pressure, Humidity, and Temperature Monitoring
  • Home Automation Control
  • HVAC / VAV
  • Pressure Transmitters
  • IoT Environmental Sensing
  • Level Sensing

Files

Product Sheet Download
