ARINC 429 IP Core

The ARINC 429 IP is a high-performance solution for integrating ARINC 429 data buses into avionics systems.

Contact Provider Request Datasheet

Overview

The ARINC 429 IP is a high-performance solution for integrating ARINC 429 data buses into avionics systems. It enables reliable, real-time communication between avionics equipment with efficient, fault-tolerant data exchange. The IP supports both transmit and receive functions, offers customizable data rates, and includes advanced error detection for data accuracy. Its hardware-based communication layer ensures low latency, high integrity, and robust performance, making it ideal for aerospace applications.

Key features

  • Fully compliant with ARINC 429 standard 429.17 for data bus communication in avionics systems.
  • Configurable N number of TX and RX Lines, variable as per the supported IO Standard.
  • Supported data rates on each channel:
    • 12.5 Kbps (Low)
    • 100 Kbps (High)
  • Up to 127 labels can be used for each receive channel.
  • Programmable interrupt generation.
  • Supports ARINC 429 32-bit data word format, including Label, Data, Parity, and Status fields.
  • Supports AXI4 Lite Interface for Control and Status Register.
  • Built-in parity checking, and error flagging mechanisms for high data integrity.
  • Designed for low power consumption to meet avionics system power budget constraints.

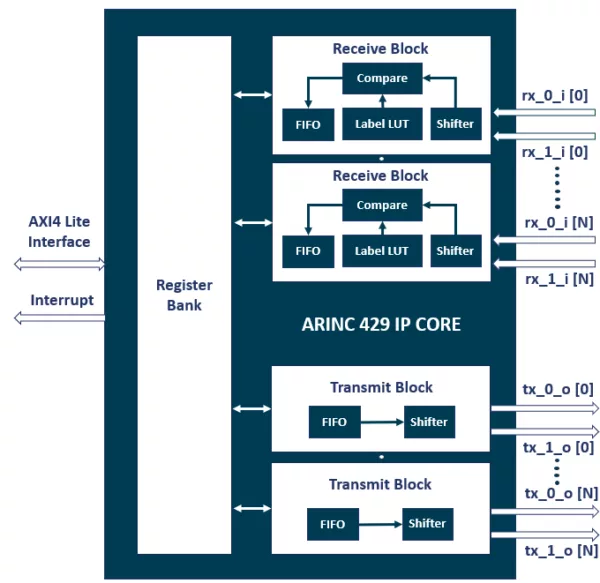

Block Diagram

ARINC 429 IP Core block diagram

Specifications

Identity

Part Number
ARINC 429 IP Core
Vendor
iWave Systems Technologies Pvt. Ltd.
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

iWave Systems Technologies Pvt. Ltd.
HQ: India
iWave Systems is a technology oriented organization founded in 1999 by enterprising technocrats, each with two decades of experience in the areas of Hardware and Embedded Software. We are an International design house with an energetic team of professionals with extensive experience in engineering real time embedded Systems. iWave Systems is poised to empower today's technology demands with appropriate, custom designed embedded system solutions. Our focus is in providing effective and efficient solutions to our customers at an optimal cost with an accelerated time-to-market. We help our customers worldwide to explore and leverage the state of the art technologies and achieve excellence in their business objectives.
