ARINC 429 IP Core

ARINC 429 IP Core implements ARINC 429 standard.

Contact Provider Request Datasheet

Overview

ARINC 429 IP Core implements ARINC 429 standard. IP Core contains Rx and Tx processing blocks, Controller Block, Internal Memory and External Memory Interfaces. A429 IP communicates with CPU (Central Processing Unit) and external memory through AXI interface.

IP Core uses AXI interface as internal local bus. AXI interface is 32-bit data bus which has 32-bit addressing, 32-bit read and write channel. IP supports to 32 receive channel number and
16 transmit channel number.

The IP is designed to be compatible with DO-254. ARINC 429 IP is field approved.

Key features

  • Supports ARINC 429 Specification
  • Configurable up to 32 Rx and 16 Tx Channels
  • Supports 12.5 kbit/s and 100kbit/s data rates
  • Contains 32-bit local data bus
  • Contains Individual and Circular buffer area which have 1024 word depth for each channel
  • Supports single and periodic data transfer
  • Filter mechanism based on SDI, ESSM, Label of ARINC 429 data
  • Occuring of filter process in FPGA
  • Communication with CPU and external memory
  • Field Approved
  • DO-254 compliant

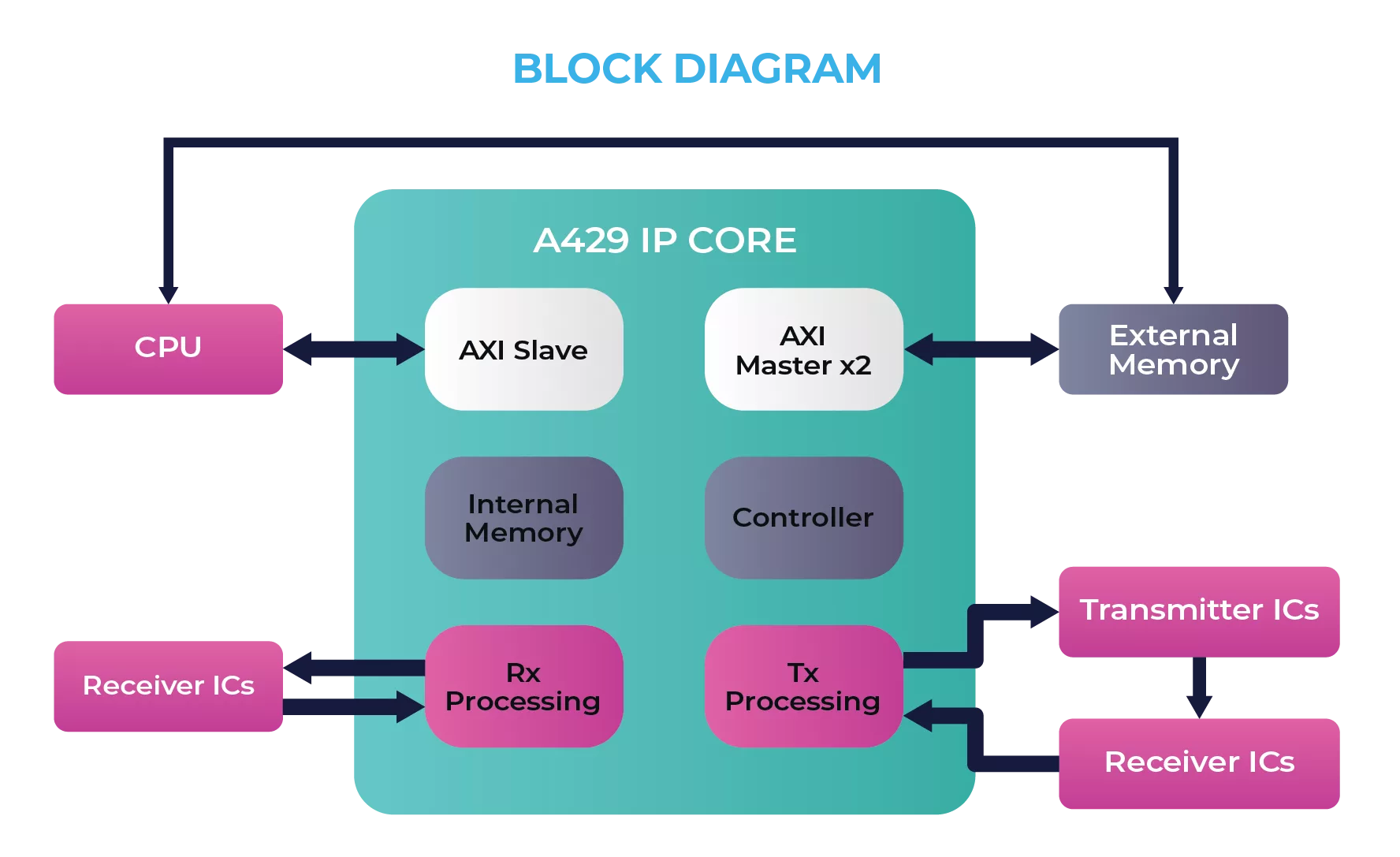

Block Diagram

ARINC429 IP Core block diagram

What’s Included?

  • Encrypted VHDL source code
  • ARINC 429 IP Core User Guide
  • Optional DO-254 Certification Data Package is available.

Specifications

Identity

Part Number
ARINC429 IP Core
Vendor
ElectraIC
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

ElectraIC
HQ: Turkey
ElectraIC provides electronic circuit design and verification services in the field of ASIC, FPGA and embedded systems. The team has the experience of working with global multinational companies. The company has been involved in and continues to take part in many projects, especially in Aerospace and Defense areas, as well as consumer electronics. Functional safety using DO-254, ISO 26262 and EN 50129 are speciality areas. ElectraIC delivers also trainings on ASIC, FPGA and embedded systems. Contributions ElectraIC can make to your organization:
  • Design IP Cores
  • Design & Verification Services: ASIC / FPGA and Embedded Systems’ development
  • Functional Safety Consultancy & Training Services
  • Trainings: Wide range of trainings with more than 150 different trainings
