Vendor: Silvaco, Inc. Category: UART

APB UART 16550

This is a implementation of a 16550 UART.

Contact Provider Request Datasheet

Overview

This is a complete implementation of a 16550 UART. The UART contains the following main sections:

  • Configuration Registers
  • Baud Rate Generator
  • Transmitter
  • Receiver
  • Interrupt Generation Logic
  • Modem Control Logic

Configuration registers are written and read by the processor. The baud rate generator produces timing strobes at the baud rate (for the transmitter) and at 16 times the selected baud rate (for the receiver). The UART clock can be asynchronous to the APB clock. The receiver examines the incoming data and uses the first edge of the start bit to determine the bit timing. The transmit and receive paths can be configured to use a single register for data or to use FIFOs. Finite State Machines (FSMs) control the transmit and receive sections. Various error conditions can cause an interrupt to be generated.

Key features

  • AMBA® APB Compatible
  • 16450 and 16550 Compatible Modes
  • Modem control
  • Programmable baud rates
  • FIFO and non-FIFO modes
  • Transmit and Receive FIFOs with parameterizable depth
  • Interrupt control

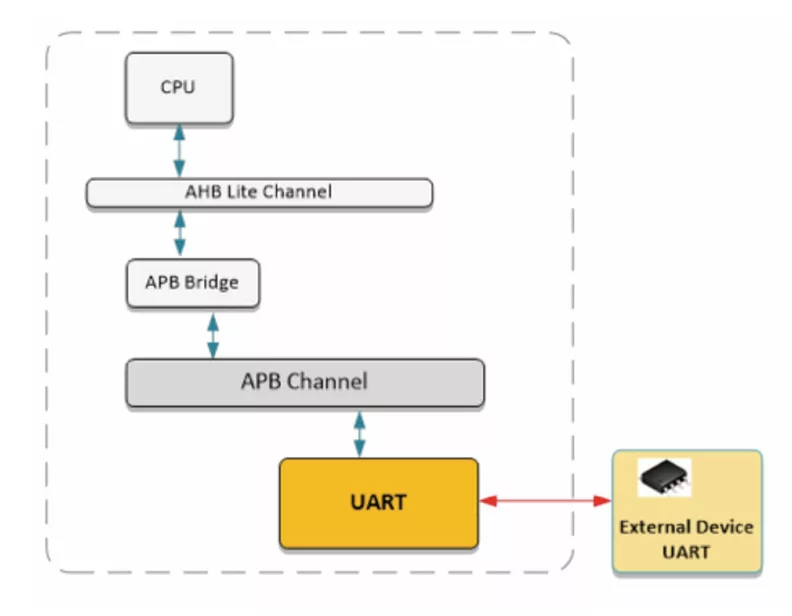

Block Diagram

APB UART 16550 block diagram

What’s Included?

  • Verilog Source
  • Complete Test Environment
  • APB Bus Functional Model

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
APB UART 16550
Vendor
Silvaco, Inc.

Provider

Silvaco, Inc.
HQ: United States
Silvaco focuses on enabling the next generation of AI/ML, Cloud/Datacenter, Automotive and Autonomous Driving, IoT and 5G designs through a comprehensive offering of Silicon proven IP. Our portfolio includes a complete catalog of Interface IP, Amba Peripherals, Subsystems, MIPI IP and Automotive Communication Controller IP. Our experienced ASIC and Embedded Software designers have a rich history of designing SOCs with embedded microprocessors which are crucial to building small connected smart chips.
