AHB Internal SRAM Controller

The AHB SRAM Controller provides a standard AHB interface to translate AHB bus reads and writes into reads and writes with the si…

Contact Provider Request Datasheet

Overview

The AHB SRAM Controller provides a standard AHB interface to translate AHB bus reads and writes into reads and writes with the signaling and timing of a standard 32-bit synchronous SRAM.

The AHB SRAM Controller provides zero-wait-state AHB access to the synchronous SRAM in all cases except for the following back-to-back events: an AHB write directly followed by an AHB read. In this case, a single wait state is asserted. Because of the zero-wait-state operation, this interface is intended to drive an on-chip memory (as opposed to off-chip memory where the return path for the read data might require wait states).

The AHB SRAM Controller contains two interfaces: an AHB Slave interface (for connecting to a Mirrored-Slave interface of an AHB Channel module), and a Memory interface (for connecting to a standard synchronous SRAM).

Key features

  • AMBA® AHB Compatible
  • Handles byte, half, and word (8,16,32bit) accesses to internal SSRAM
  • Can be used with Internal Flash or OTP Memory
  • Zero wait state / low latency operation

Block Diagram

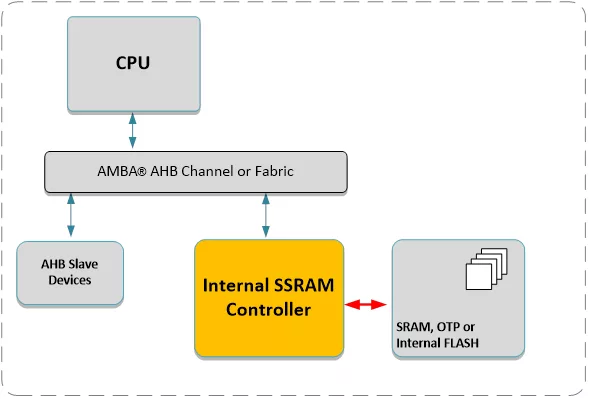

AHB Internal SRAM Controller block diagram

What’s Included?

  • Verilog Source
  • Complete Test Environment
  • AHB Bus Functional Model
  • C-Sample Code

Files

Product Sheet Download
