Adaptive Body Bias Generator on Samsung 28nm LN28FDS

The adaptive body bias generator (ABBG) consists of a positive-BBG and a negative-BBG for FDSOI-MOS transistors.

Contact Provider Request Datasheet
Samsung 28nm View all specifications

Overview

The adaptive body bias generator (ABBG) consists of a positive-BBG and a negative-BBG for FDSOI-MOS transistors. The ABBG is used for either Reverse Body Biasing (RBB) to reduce leakage current of the logic devices or Forward Body Biasing (FBB) to improve the system performance by adjusting the body voltages of transistors.

Key features

  • 1.8V±10% and 0.72V~1.1V dual power supply
  • Operational Junction Temperature(TJ): -40~125℃
  • Controllable output range: 0.3 V to 1.4 V and -1.4 V to -0.3 V
  • Programmable output voltage with 4-bit control(100mV step)
  • Operation mode: Active and Bypass Mode
  • Required Negative Charge Pump output capacitance: 1uF

Block Diagram

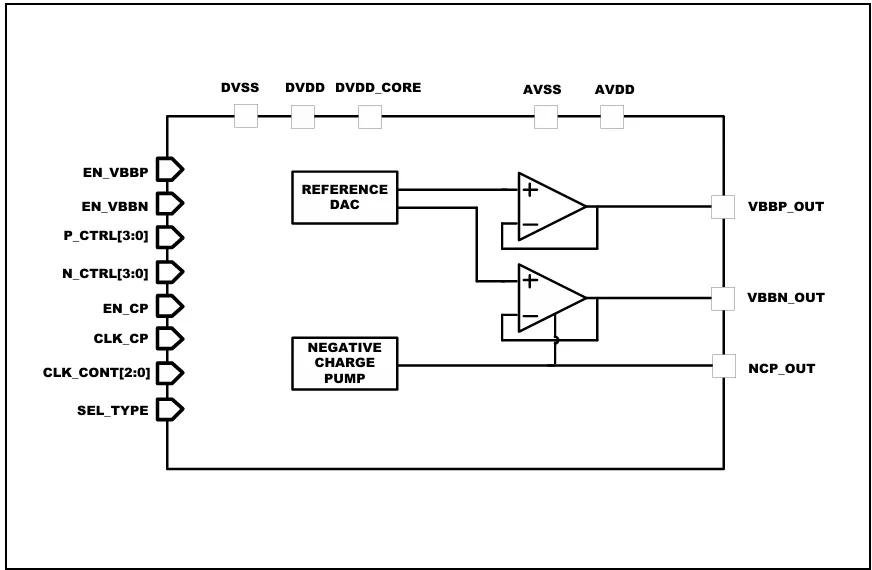

ABBG block diagram

Benefits

  • Low Area
  • Low Power

Applications

  • Mobile/Consumer/IoT application

What’s Included?

  • FE(Front-End) : LEF, LIBERTY, MODEL, TB FUNCTION, TB VECTOR GEN, TWRAP
  • BE(Back-End) : CIR, DFM, DRC, GDS, LVS

Silicon Options

Foundry Node Process Maturity
Samsung 28nm 28nm 280 nm —
