Automotive Adaptive Body Biasing Generator - GLOBALFOUNDRIES 22FDX

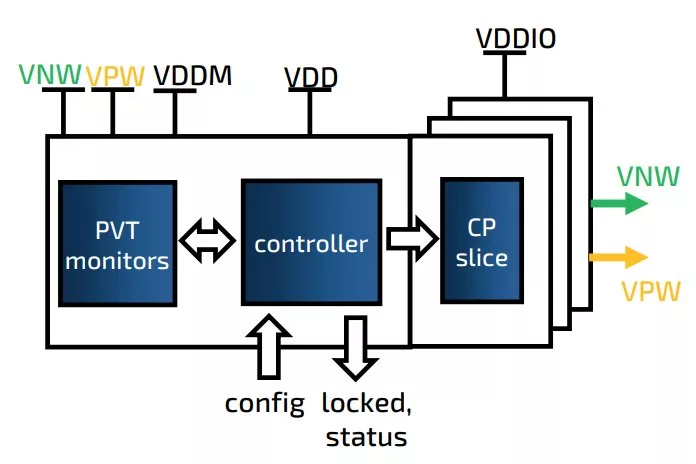

RI_ABB_GF22FDX_AM is an adaptive body bias voltage generator for automotive applications in Globalfoundries 22FDX® technology. It contains a closed loop body bias regulation loop to generate N-well and P-well bias voltages for compensation of process, voltage and temperature (PVT) variations during operation. This results in up to 76% leakage power improvement for automotive grade-1 applications up to 150°C junction temperature.

Specification

•  fref  = < 10 MHz to 50 MHz >
•  Pactive  < 200 μW (typical)
•  area < 0.0066 mm² (smallest pump strength)
•  - 0.2 V < VNW < 2.4 V
•  - 2.4 V < VPW < 0.2 V
•  Automotive grade-1 and grade-2 compliant
•  ISO26262 SEooC with ASIL D capability

  Nominal Supply Voltages

•  Body bias generation: 1.80 V
• Control logic: 0.80 V
• PVT monitors: 0.80 V

• Integrated adaptive body bias (ABB) control loop
• Charge pumps for N-Well and P-Well voltages, operated from IO supply voltage level
• Integrated PVT monitors for true independent adaption of NMOS and PMOS performance
• Operation from typically 10MHz, up to 50MHz reference clock
• Available for forward (FBB) and reverse body bias (RBB)
• Available with multiple charge pump drive strengths supporting a wide range of active chip areas
• Delivered as hardmacro for easy and seamless integration
• ISO26262 Safety Element out of Context (SEooC) with ASIL D capability
• Interoperable with foundation IP standard cells and SRAM
• Compliant to automotive grade-1 and grade-2

• Automotive
• Low Power
• IoT
• High Speed Computing

• Verilog simulation models
• .lib/.db timing and power models
• .lef layout abstract views
• NDM and Milkyway libraries
• GDSII layout
• LVS netlist
• EMIR models
• DFT models
