Adaptive Body Bias Generator - GLOBALFOUNDRIES 22FDX

RI_ABB_GF22FDX is a cutting-edge adaptive body bias (ABB) generator for GLOBALFOUNDRIES® 22FDX® technology. Featuring patented closed control loops with independent N-well and P-well body bias voltage generation, this silicon-proven IP dynamically compensates for process, voltage, and temperature (PVT) variations during operation.

Specification

• fref = < 10 MHz to 50 MHz >
• Pactive = 12 μW (typical)
• area < 0.006 mm² (smallest pump strength)
• - 0.2 V < VNW < 2.4 V
• - 2.4 V < VPW < 0.2 V

Nominal Supply Voltages

• Body bias generation: 1.80 V
• Control logic: 0.80 V
• PVT monitors: 0.40 V / 0.45 V / 0.50 V / 0.55 V / 0.60 V / 0.65 V / 0.80 V / 0.90 V

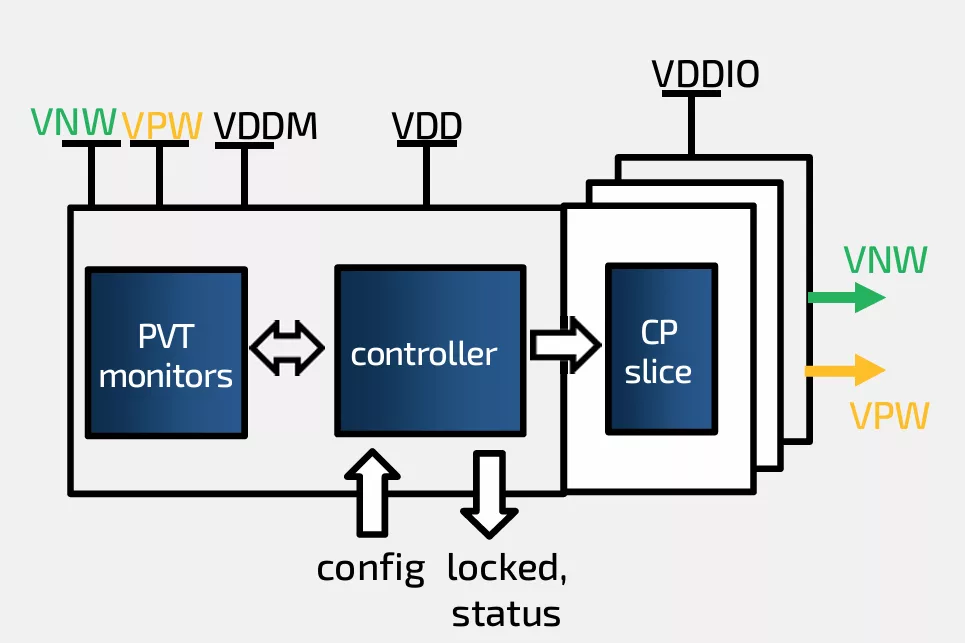

• Integrated adaptive body bias (ABB) control loop
• Charge pumps for N-Well and P-Well voltages,   operated from IO supply voltage level
• Integrated PVT monitors for true independent adaption  of NMOS and PMOS performance
• Operation from typically 10 MHz, up to 50 MHz reference clock
• Available in forward (FBB) and reverse body bias (RBB) versions
• Available in multiple charge pump drive strengths supporting   a wide range of active chip areas
• Delivered as hardmacro for easy and seamless integration
• Supports dynamic bias corners down to 0.40 V nominal
• Interoperable with foundation IP standard cells and SRAM

• Verilog simulation models
• .lib /.db timing and power models
• .lef layout abstract views
• NDM and Milkyway libraries
• GDSII layout
• LVS netlist
• EMIR models
• DFT models
• Available for 22FDX® PDKs
