8/10-bit Digital-to-Analog Converter

The agileDAC GP is a digital-to-analog converter that uses a traditional capacitive DAC architecture.

Contact Provider Request Datasheet
10 Bit View all specifications

Overview

The agileDAC GP is a digital-to-analog converter that uses a traditional capacitive DAC architecture. The agileDAC uses its own internal reference voltage. The architecture can achieve up to 10-bit resolution at sample rates up to 16 Msps.

Agile Analog designs are based on tried and tested architectures to ensure reliability and functionality. Our design methodology is programmatic, systematic and repeatable leading to analog IP that is more verifiable, more robust and more reliable. Our methodology also allows us to quickly re-target our IP to different process options. We support all the major foundries including TSMC, GlobalFoundries, Intel Foundry, Samsung Foundry, UMC and Other Foundries.

Key features

  • Resolution: 8bits /10bits
  • Sampling Rate (Fs): up to 16Msps
  • Output Signal Bandwidth: Typ Fs/2
  • Guaranteed monotonic
  • SFDR1: Typ -60dBc
  • INL: Max2 ±4LSB
  • DNL: Max2 ±2LSB
  • Conversion Time: Typ 2 cycles
  • Quiescent current3 (Iq):Typ 250uA
  • Customizable design for simple SoC integration
  • Integrated Calibration Mode

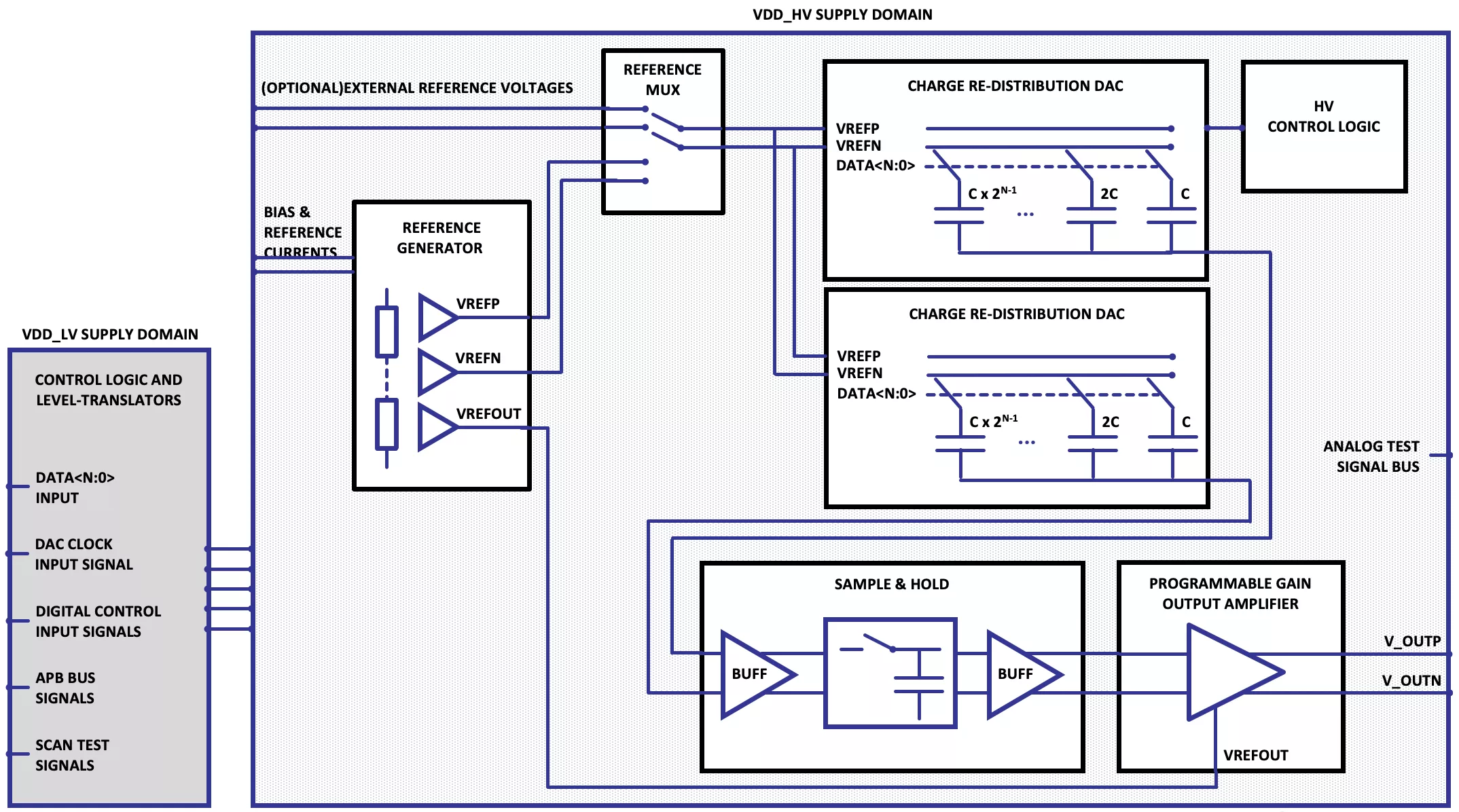

Block Diagram

agileDAC block diagram

Benefits

  • DFT/DFM
  • - AMBA-APB Interface to simply test and operation
  • - Built-in Trim and Calibration to facilitate process and/or manufacturing offsets to be adjusted

Applications

  • IoT, Security, Automotive, AI, SoCs, ASICs

What’s Included?

  • Datasheet
  • Testing and Integration Guide
  • Verilog Models
  • Floorplan (LEF)
  • Timing models (LIB)
  • Netlist (CDL)
  • Layout (GDS)
  • Physical Verification Report
  • Design Report

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
agileDAC
Vendor
Agile Analog
Type
Silicon IP

Analog

Resolution bits
10 Bit

Provider

Agile Analog
HQ: United Kingdom
Agile Analog is transforming the world of analog IP with Composa™, its innovative, configurable, multi-process analog IP technology. Headquartered in Cambridge, UK, with a growing number of partners and customers across the globe, Agile Analog has developed a unique way to automatically generate analog IP that meet the customer’s exact specifications on almost any process from any foundry. The company provides a wide and ever expanding selection of analog IP and subsystems for power management, data conversion, IC health and monitoring, security and always-on domains. Agile Analog's novel approach utilises tried and tested analog circuits within its Composa library to create customised and verified analog IP solutions. This reduces the time to market and increases quality, helping to accelerate innovation in semiconductor design.
