10-bit Video DAC

This Video DAC specifies a 3-channel 10-bit resolution, high performance, low power CMOS Digital-to-Analog Converter (DAC) which …

Contact Provider Request Datasheet
10 Bit View all specifications

Overview

This Video DAC specifies a 3-channel 10-bit resolution, high performance, low power CMOS Digital-to-Analog Converter (DAC) which offers exceptional direct current and alternating current performance and supports update rate up to 240MSPS with a stand-by mode to reduce the power dissipation.

The segmented current steering architecture is combined with a proprietary switching technique to reduce spurious components and enhance dynamic performance. Edge-triggered input latch and temperature compensated bandgap reference have been integrated to provide a complete monolithic DAC solution.

Key features

  • Silicon proven in 55, 65, 130, 180nm from SMIC, Global Foundries
  • 10-bit Current output DAC
  • Update rate: 240MSPS
  • Single-Ended or Differential Output
  • 34.2mA full scale current output
  • DNL: ±1.5 LSB, INL: ±3 LSB
  • Excellent Dynamic Parameters
    • -  60dB SFDR @ Fout=2.2MHz IFS=34mA
    • -  56dB SNR @ Fout=2.2MHz IFS=34mA
  • On-chip Voltage reference
  • Stand-By and Power-Down Modes

Block Diagram

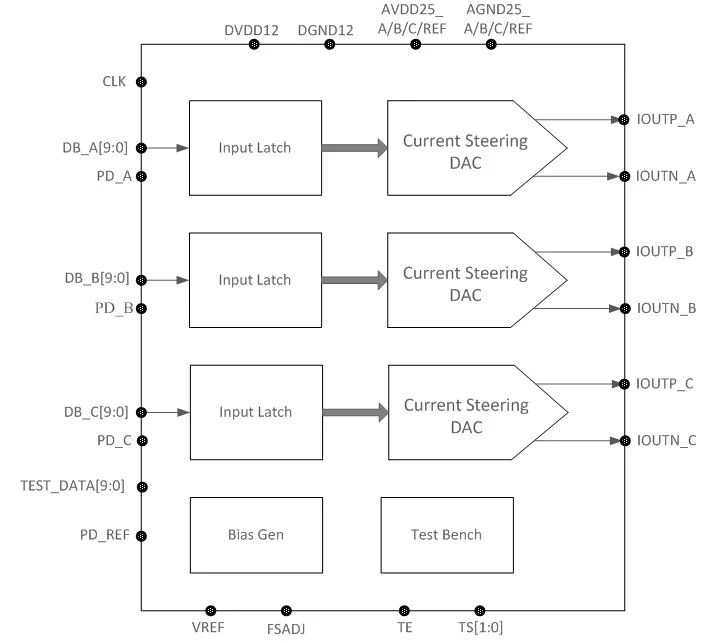

Video DAC block diagram

Applications

  • Digital Video Systems
  • Digital Radio Modulation
  • High Resolution Color Graphics
  • Wireless LAN
