Vendor: Sifive, Inc. Category: CPU

64-bit embedded processor, fully compliant with the RISC-V ISA

SiFive’s E51 Coreplex is a 64-bit embedded processor, fully compliant with the RISC-V ISA.

Overview

SiFive’s E51 Coreplex is a 64-bit embedded processor, fully compliant with the RISC-V ISA. An extremely small-footprint, low-power design makes the E51 Coreplex ideal for devices that require a tiny system controller for housekeeping, security, or host processing within a larger 64-bit SoC. An extended memory map of 40 physical address bits also makes the E51 Coreplex a great solution for SSD controllers and networking applications.

Key features

  • Fully compliant with the RISC-V ISA specification
  • RV64IMAC Support:
    • RV64I – 64-bit RISC-V with 32 integer registers
    • Integer Multiplication and Division (M) support
    • Atomic Mode (A) support for high-performance, portable software
    • Compressed Mode (C) support for better code density
  • Machine and User Mode Support
  • In-order, 5-6 stage variable pipeline
  • Advanced Memory Subsystem:
    • 16KB, 2-way Instruction Cache
    • Instruction Tightly Integrated Memory (ITIM) option
    • Up to 64KB Data Tightly Integrated Memory (DTIM) support
  • Support for up to 40 physical address bits
  • Efficient and Flexible Interrupts: Local interrupts w/ vectored addresses — up to 16
    • Platform Level Interrupt Controller (PLIC) — 511 interrupts w/ 7 priority levels
    • Coreplex Local Interrupts (CLINT) — 1 timer, 1 SW
  • 8-Region Physical Memory Protection (PMP)
  • 1.8 DMIPS/MHz
  • 2.76 Coremark/MHz

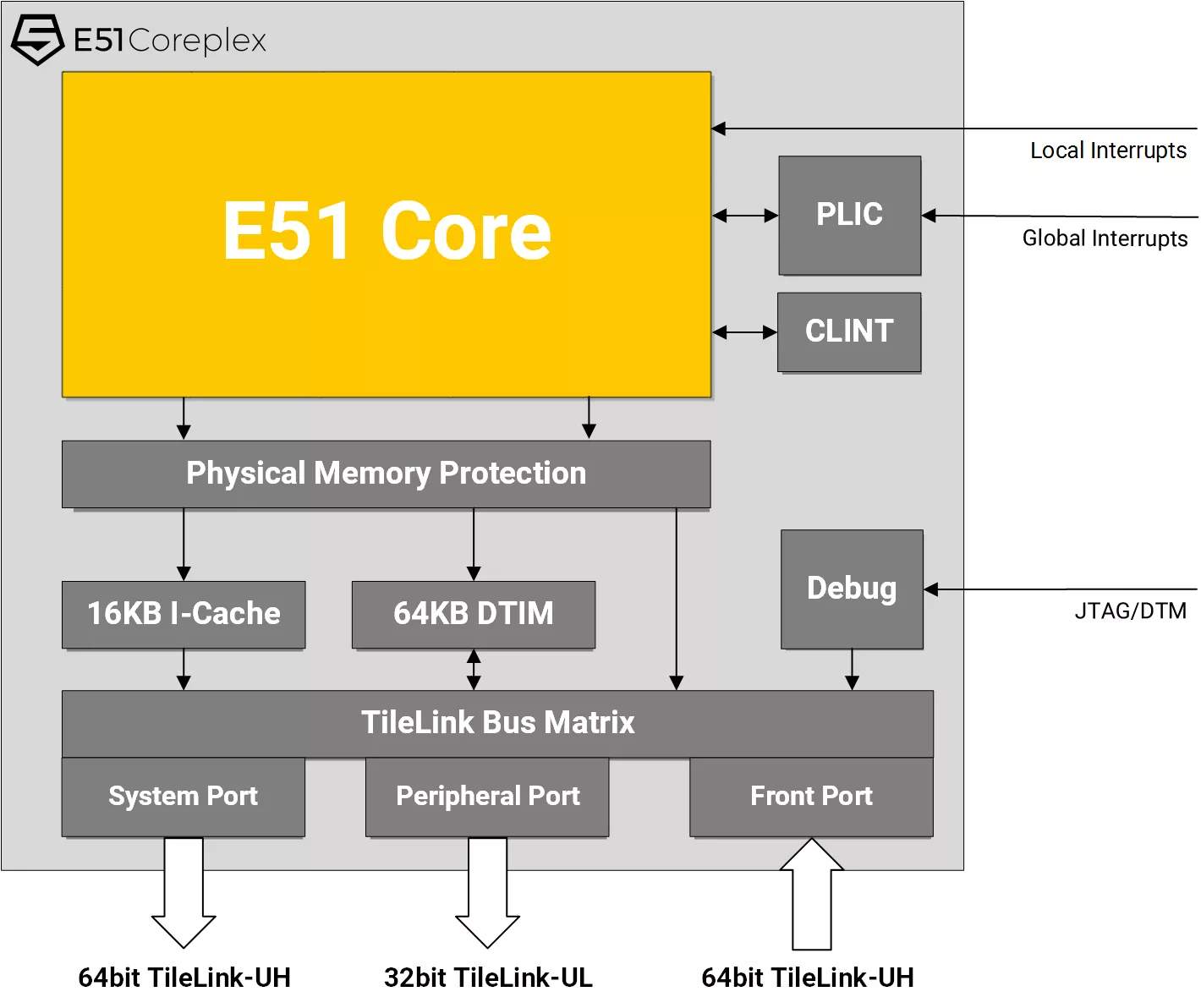

Block Diagram

Benefits

  • RV64IAC M + U Modes
  • Up to 1.5 GHz in 28nm
  • 1.8 DMIPS/MHz
  • Physical Memory Protection (PMP)
  • 16KB Instruction Cache
  • Instruction Tightly Integrated Memory (ITIM) up to 8KB
  • Data Tightly Integrated Memory (DTIM) up to 64KB
  • 31 Usable Registers
  • 511 Global Interrupts + 16 Local Vectored Interrupts
  • No royalties
  • 7-page contract
  • Open access to all

What’s Included?

  • E51 Coreplex IP in Verilog
  • Constraints File (SDC)
  • Integration Guide covering:
    • Synthesis
    • Place and Route
    • Floorplanning
  • Test simulation environment

Specifications

Identity

Part Number
E51 Coreplex
Vendor
Sifive, Inc.
Type
Silicon IP

Compute

CPU Architecture
RISC-V

Files

Note: some files may require an NDA depending on provider policy.

Provider

Sifive, Inc.
HQ: USA
