Vendor: NTLab Category: LDO Voltage Regulator

5mA LDO voltage regulator (output voltage value 1.15V/1.2 V/1.25V/1.3V) with BG (0.6V) and I2V (5uA, 10uA, 20uA, 50uA)

130GF_LDO_03 is a Power management unit, designed to supply integrated circuits with stable and precise voltage.

Contact Provider Request Datasheet
GlobalFoundries 130nm BCD Pre-Silicon View all specifications

Overview

130GF_LDO_03 is a Power management unit, designed to supply integrated circuits with stable and precise voltage. IP includes Bandgap block (BG), Voltage to current convertor (V2I), LDO to convert 1.3V – 2.0V voltage to 1.2V and supply analog circuits with load up to 15mA. Bandgap is a voltage reference source, where voltage is formed independently from temperature and power supply variations, and where typical reference voltage is 0.6V. V2I is a Voltage-to-Current converter to generate required nominal values of reference current to analog blocks.

Key features

  • Global Foundries 0.13 um CSOI
  • Input voltage range from 1.3V to 2.0V
  • Output voltage value: 1.15V / 1.2V / 1.25V / 1.3V
  • Output current reference: 5uA, 10uA, 20uA, 50uA
  • Bandgap output voltage 0.6V
  • Output voltage reference deviation +/- 5.7%
  • Current consumption 0.15mA

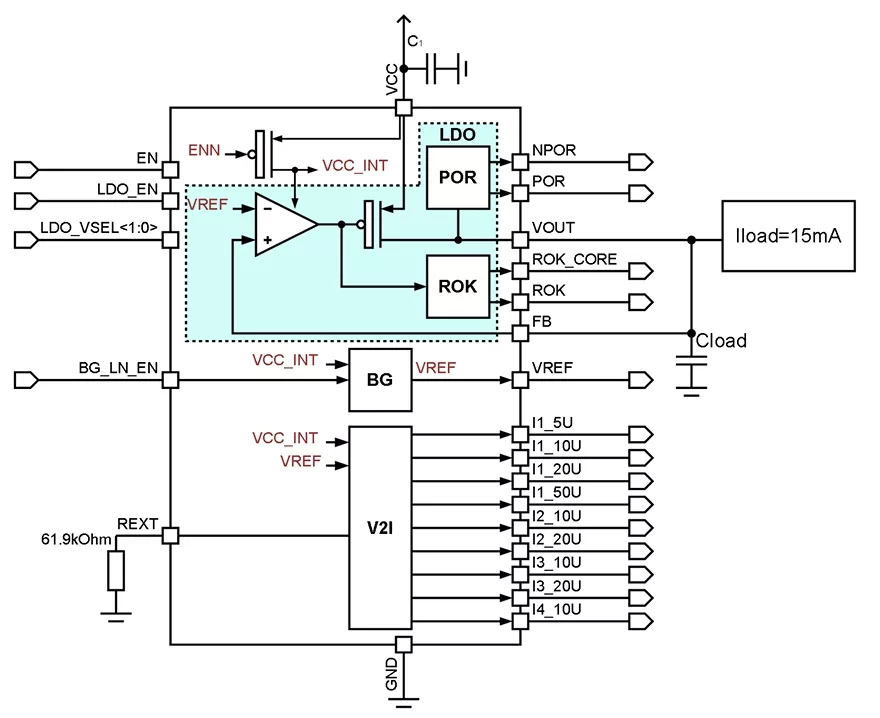

Block Diagram

130GF_LDO_03 block diagram

Applications

  • Portable electronic devices
  • System-on-chip for different purposes
  • Measurement and calibration systems
  • Navigation systems
  • Communication systems

What’s Included?

  • Schematic or NetList
  • Abstract view (.lef and .lib files)
  • Layout (optional)
  • Behavioral model (for functional verification)
  • Extracted view (optional)
  • GDSII
  • DRC, LVS, antenna report
  • Test bench with saved configurations (optional)
  • Documentation

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Silicon Options

Foundry Node Process Maturity
GlobalFoundries 130nm BCD Pre-Silicon

Specifications

Identity

Part Number
130GF_LDO_03
Vendor
NTLab
Type
Silicon IP

Provider

NTLab
HQ: Lithuania
NTLab is a vertically integrated microelectronics design center. It has 70+ experienced and qualified engineers. NTLab specializes in the designing of mixed-signal and RF ICs and Systems-on-Chip. It has a wide range of own silicon-verified IP blocks: processor cores, interfaces, analog and high-frequency PHYs, etc., thus allowing customized design to be fast and predictable. In-company unique combination of competences in digital, analog and RF circuits and embedded software enables NTLab to participate in the projects that require deep research and utilize most sophisticated and advanced techniques: multi-system GPS/GLONASS/Galileo/BeiDou/NavIC(IRNSS)/QZSS/SBAS navigation, RF ID, wireless communications, etc. All designed ICs are provided with test and development tools, as well as with reference software. NTLab offers a wide range of silicon proven analog/mixed-signal IPs in 0.35µm, 0.25 µm, 0.18 µm, 0.13 µm, 0.09 µm, 65nm, 55nm, 40nm, 28nm, 22 nm CMOS and SiGe BiCMOS processes. These IPs are suitable for devices targeted both consumer and industrial markets. Most of these IPs have been proven in silicon on the foundries: Samsung, UMC, GlobalFoundries, SMIC, VIS, Tower, X-FAB, iHP, AMS, SilTerra, STMicroelectronics, Winfoundry.
