Vendor: 1-VIA Category: ADC

20GSa/s 12-Bit Analogue-to-Digital Converter (ADC)

1-VIA’s high-speed low-power RF-ADC is targeted at upcoming telecommunication markets such as 5G and Satellite Communications.

12 Bit TSMC 12nm FFC View all specifications

Overview

1-VIA’s high-speed low-power RF-ADC is targeted at upcoming telecommunication markets such as 5G and Satellite Communications. The RF-ADC has an effective 3dB bandwidth > 9GHz and 10 Effective Number of Bits (ENOB), making it an ideal candidate for FR1 (sub-6 GHz) and FR2 (mmWave 6-100 GHz) 5G deployment scenarios.

The ADC is a standalone macro which employs calibration of time interleaving skew, linearity and offset both at start-up and continuously in the background.

Key features

  • TSMC: 12/16nm CMOS FinFET
  • Resolution: 12-bit
  • Sampling rate: 20GSa/s
  • Power supplies: 1.8V, 1.2V, 1V and 0.8V
  • Power consumption: 800mW
  • Differential analog input: 1Vppd
  • 3dB Input bandwidth: > 9GHz
  • DNL: ± 0.5 LSB
  • INL: ± 0.5 LSB
  • SNDR: 61.5dBc
  • Background time interleaving skew, linearity and offset calibration

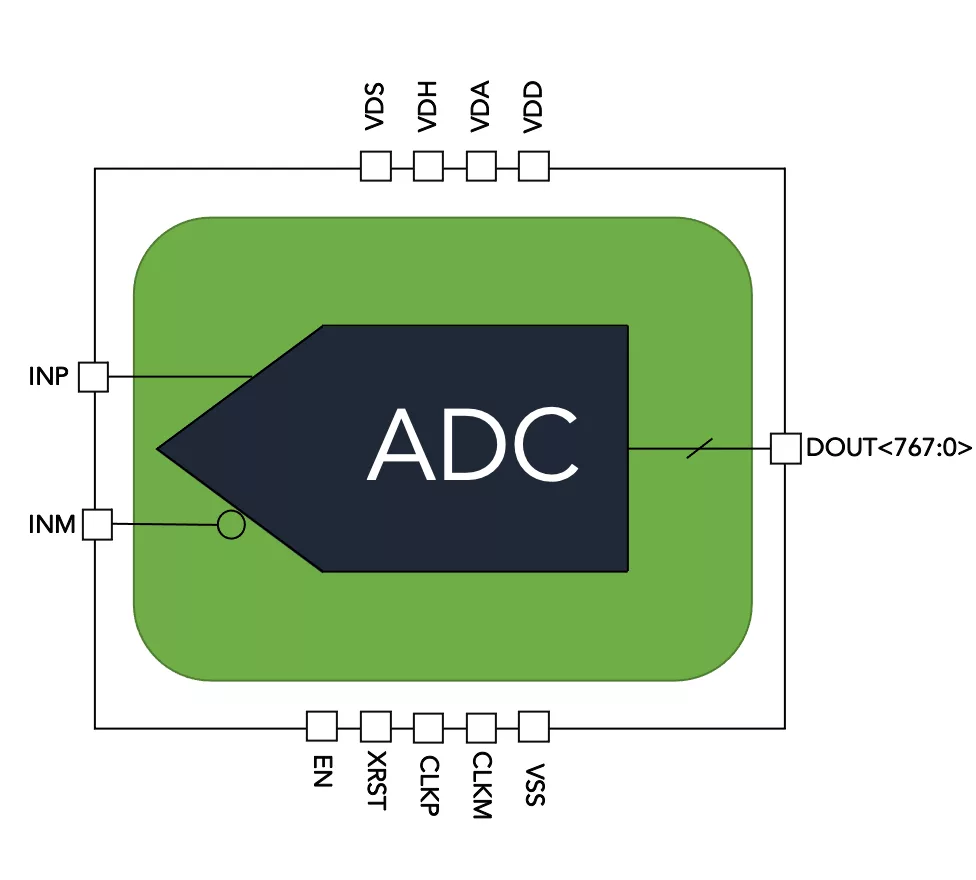

Block Diagram

Applications

  • 5G Base stations
  • Automotive Driver Assistance Systems (ADAS)
  • Direct-RF
  • Multi-carrier and Multi-standard wireless infrastructure
  • Satellite communications
  • Test equipment

What’s Included?

  • Datasheet
  • Characterization report
  • Layout view (GDSII)
  • Abstract view (LEF)
  • Timing View (LIB)
  • Behavioural model (Verilog)
  • Integration guidelines and support

Files

Note: some files may require an NDA depending on provider policy.

Silicon Options

Foundry Node Process Maturity
TSMC 12nm FFC

Specifications

Identity

Part Number
VMADCCS020A
Vendor
1-VIA
Type
Silicon IP

Analog

Resolution bits
12 Bit

Provider

1-VIA
HQ: UK
1-VIA are continuously developing state-of-the-art, high-speed and low-power transceivers targeting next-generation satellite, data centre, telecommunications and automotive markets. With some of the industry’s most skilled and experienced analog/mixed-signal IC designers onboard they have a combined experience of more than 100 years in cutting-edge silicon design of high-speed ADC, DAC and PLL.
