Overview
The ODT-ADS-12B2G-12nm is an ultra-highperformance time-interleaved ADC designed in a 12nm CMOS process.
This 12-bit, 2GSPS ADC supports input signals up to 1.0 GHz and features a differential full-scale range of 0.8Vpp and excellent static and dynamic performance.

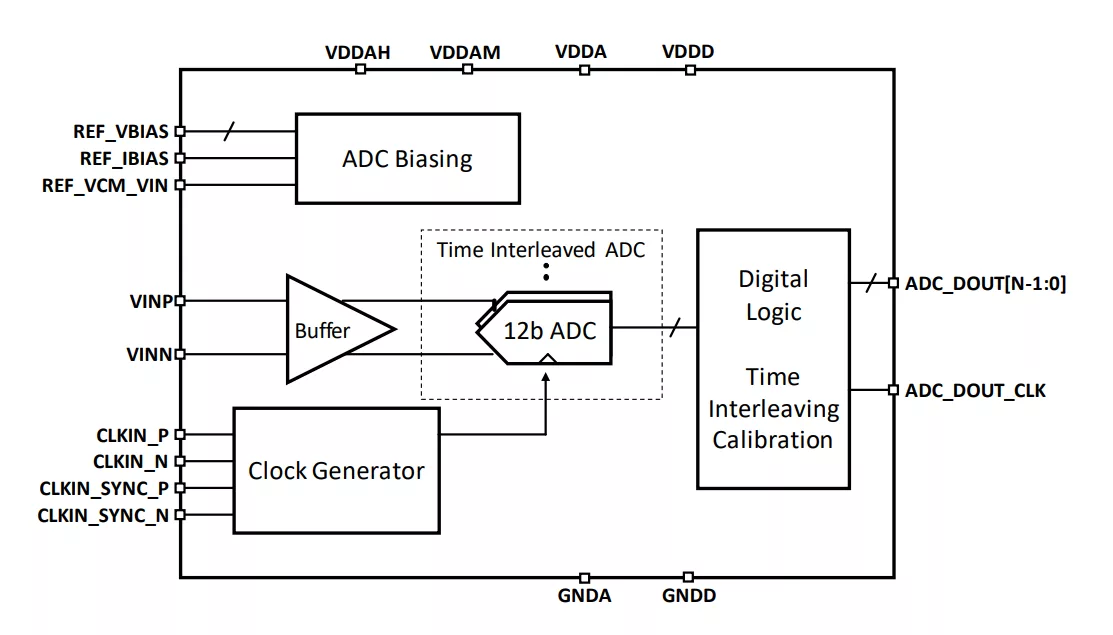

The ADC architecture is optimized to maximize performance while minimizing power and area consumption. The ADC input is internally buffered and then distributed to time-interleaved ADC channels.
The ADC includes built in calibration to remove time interleaving artifacts, including offset mismatch, gain mismatch and timing skew.
To maximize SNR, the ADC includes an ultra-lowjitter clock distribution network with aperture jitter of 100fsrms.
