Vendor: Chipus Microelectronics Category: Voltage Reference

16nA Resistive Current Bias Low Voltage (1.0V), Low Power (360nW @ 1.2V)

This macro-cell is a low power general purpose current bias generator core designed for SilTerra 0.18µm CL180G CMOS technology.

Contact Provider Request Datasheet
Silterra 180nm G Silicon Proven View all specifications

Overview

This macro-cell is a low power general purpose current bias generator core designed for SilTerra 0.18µm CL180G CMOS technology.

The circuit generates 7 × NMOS 16nA current branches and 1 × NMOS 8nA branch. The current bias is temperature compensated using the PTAT thermal coefficient (TC) of an integrated resistor.

The core is easily retargeted to any other CMOS technology due to high portability architecture.

Key features

  • Low power current bias
  • Low TC
  • Ibias=15.5nA ±10% (without trimming)
  • Current consumption around 300nA in active mode
  • Flexible voltage operation: 1.0V–2.0V
  • Enable control
  • Indicative area: 0.0072mm2

Block Diagram

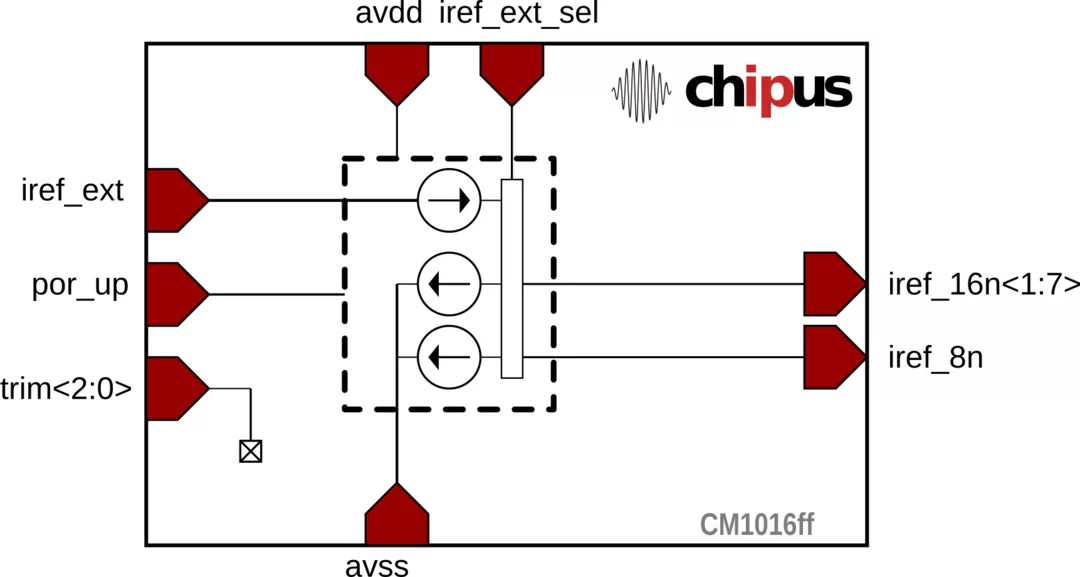

CM1016ff block diagram

Applications

  • Passive/active RFID tag ICs
  • Battery powered equipment
  • Energy Harvesting ICs
  • Hearing Aids

What’s Included?

  • Datasheet/Integration Guide
  • HDL Model
  • Flat GDSII database/LVS netlist
  • Customer Support

Silicon Options

Foundry Node Process Maturity
Silterra 180nm G Silicon Proven

Specifications

Identity

Part Number
CM1016ff
Vendor
Chipus Microelectronics
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Chipus Microelectronics
HQ: Brazil
