Vendor: NTLab Category: Voltage Reference

1.22V/1uA Reference voltage and current source

180XFAB_RS_01 consists of a bandgap reference voltage regulator, formed temperature and power supply variations independent volta…

Contact Provider Request Datasheet

Overview

180XFAB_RS_01 consists of a bandgap reference voltage regulator, formed temperature and power supply variations independent voltage and bias, formed reference currents for internal analog blocks based on an external resistor 69.1kΩ. The block starts to operate after power up on 3.3V to 4.2V voltage and en = “1”. The RS is capable to output one reference voltage for analog blocks vbg_out 1.22V without trimming feature. Typical reference current iref_1u is 1uA. It should be noted that nominal values of reference current inversely depend on the external resistor.

Key features

  • Area: 0.032mm2.

Block Diagram

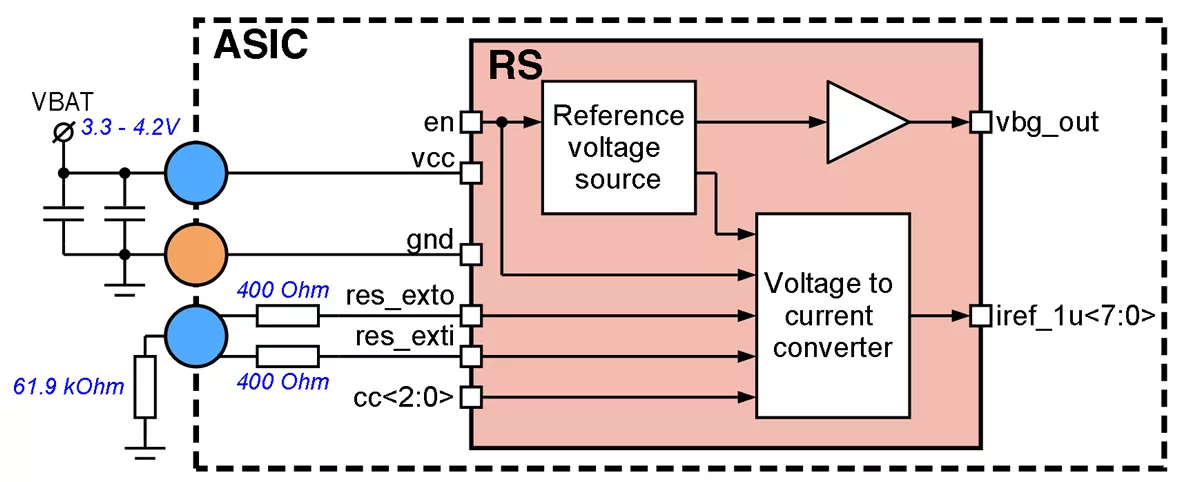

180XFAB_RS_01 block diagram

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
180XFAB_RS_01
Vendor
NTLab
Type
Silicon IP

Provider

NTLab
HQ: Lithuania
NTLab is a vertically integrated microelectronics design center. It has 70+ experienced and qualified engineers. NTLab specializes in the designing of mixed-signal and RF ICs and Systems-on-Chip. It has a wide range of own silicon-verified IP blocks: processor cores, interfaces, analog and high-frequency PHYs, etc., thus allowing customized design to be fast and predictable. In-company unique combination of competences in digital, analog and RF circuits and embedded software enables NTLab to participate in the projects that require deep research and utilize most sophisticated and advanced techniques: multi-system GPS/GLONASS/Galileo/BeiDou/NavIC(IRNSS)/QZSS/SBAS navigation, RF ID, wireless communications, etc. All designed ICs are provided with test and development tools, as well as with reference software. NTLab offers a wide range of silicon proven analog/mixed-signal IPs in 0.35µm, 0.25 µm, 0.18 µm, 0.13 µm, 0.09 µm, 65nm, 55nm, 40nm, 28nm, 22 nm CMOS and SiGe BiCMOS processes. These IPs are suitable for devices targeted both consumer and industrial markets. Most of these IPs have been proven in silicon on the foundries: Samsung, UMC, GlobalFoundries, SMIC, VIS, Tower, X-FAB, iHP, AMS, SilTerra, STMicroelectronics, Winfoundry.
Contact NTLab
