Vendor: Silvaco, Inc. Category: Voltage Reference

Bandgap Voltage Reference, 0.45 V Output, Low PPM/°C, TSMC N3P

Bandgap Voltage Reference, 0.45 V Output The Bandgap Voltage Reference IP is a 1.0 V input, low PPM/°C, 0.45 V reference voltage …

Contact Provider Request Datasheet
TSMC 3nm N3P Silicon Proven View all specifications

Overview

Bandgap Voltage Reference, 0.45 V Output

The Bandgap Voltage Reference IP is a 1.0 V input, low PPM/°C, 0.45 V reference voltage output implemented in the TSMC 3nm N3P CMOS process technology. Its low Temperature Coefficient, compact area, and wide operating temperature range make it especially suitable for use as a precision voltage reference for low voltage subsystems implemented in analog, digital, mixed-signal and RF ASICs and SoCs.

Key features

  • TSMC 3nm FinFET process
  • Input voltage: 1.0 V +/-10%
  • Output voltage: 0.45 V
  • Output voltage variation: < 5 mV at 0°C to 100°C
  • PSRR: > 40 dB @ DC
  • Low temperature coefficient (ppm/°C)
  • Power consumption: ~ 1 mW
  • Compact area
  • Temperature range: -40°C to 125°C

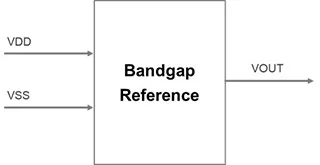

Block Diagram

Bandgap Voltage Reference block diagram

What’s Included?

  • SPICE Netlist and OA Schematics
  • GDSII and LEF
  • Behavioral Model
  • IP Datasheet
  • User’s Guide
  • Integration Guide

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Silicon Options

Foundry Node Process Maturity
TSMC 3nm N3P Silicon Proven

Specifications

Identity

Part Number
Bandgap Voltage Reference
Vendor
Silvaco, Inc.
Type
Silicon IP

Provider

Silvaco, Inc.
HQ: United States
Silvaco focuses on enabling the next generation of AI/ML, Cloud/Datacenter, Automotive and Autonomous Driving, IoT and 5G designs through a comprehensive offering of Silicon proven IP. Our portfolio includes a complete catalog of Interface IP, Amba Peripherals, Subsystems, MIPI IP and Automotive Communication Controller IP. Our experienced ASIC and Embedded Software designers have a rich history of designing SOCs with embedded microprocessors which are crucial to building small connected smart chips.
