20b-linear 100MS/s DAC on X-FAB 180nm SOI

20b-linear 100MS/s DAC on X-FAB 180nm SOI

20 Bit X-FAB 180nm XT018 Available on request View all specifications

Key features

  • Implementation technology: X-FAB 180nm SOI (XT018) 5+1 Metal, Double-MiM Cap for high linearity and low temp. coeff.
  • Architecture: digital oversampling Sigma-Delta Modulator with 38 current-steering cells and 2stage analog RC reconstruction filtering with two fully differential Voltage Amplifiers
  • Power Supply: 1.8Vdd analog & digital core, 5Vdd analog power output
  • 20bit 10MS/s digital input interpolated (10x, 20x) to 100MS/s as oversampling Sigma-Delta Modulator input
  • 3 different digital scrambler/randomizer implemented: Dynamic Element Matching (DEM), Data Weighted Averaging (DWA)
  • fully differential 2-stage analog signal path with out-of-band noise filtering (> 1,25MHz)

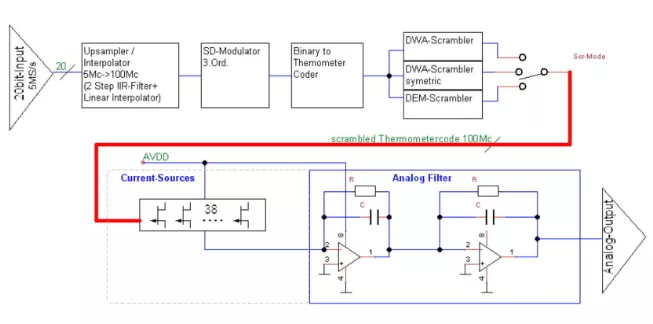

Block Diagram

Files

Note: some files may require an NDA depending on provider policy.

Silicon Options

Foundry Node Process Maturity
X-FAB 180nm XT018 Available on request

Specifications

Identity

Part Number
20b-linear 100MS/s DAC
Vendor
Continium Technologies
Type
Silicon IP

Analog

Resolution bits
20 Bit

Provider

Continium Technologies
HQ: GERMANY
