USB 2.0 Controller

Mature controller solution for OTG and Device applications The USB 2.0 Controller IP products have been available since 1999, are…

Contact Provider Request Datasheet

Overview

Mature controller solution for OTG and Device applications

The USB 2.0 Controller IP products have been available since 1999, are silicon-proven, and have been extensively validated with multiple hardware platforms. The flexible architecture of Cadence USB 2.0 Controller IP was developed with faster time-to-market in mind and can be easily integrated with our USB 2.0 PHY IP. Our USB 2.0 Controller IP includes 2.0 On-The-Go (OTG) and Device controllers.

Key features

  • Support for Link Power Management (L0 through L3)
  • Scatter-gather DMA with Arm® AMBA® AXI interface
  • Up to 8 IN and 8 OUT configurable endpoints
  • Supports Attach Detection Protocol

Block Diagram

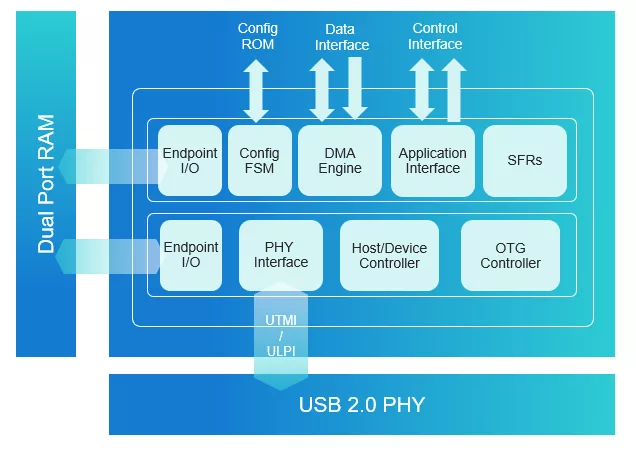

USB 2.0 Controller block diagram

Applications

  • Automotive,
  • Communications,
  • Consumer Electronics,
  • Data Processing,
  • Industrial and Medical,
  • Military/Civil Aerospace,
  • Others

What’s Included?

  • Synthesizable RTL
  • Testbench
  • Synthesis and simulation support files
  • Documentation

Files

Product Sheet Download
