MCU-less USB Billboard Device Controller
The CT25100 is a Full-Speed USB controller, which enumerates as Billboard Device.
Overview
The CT25100 is a Full-Speed USB controller, which enumerates as Billboard Device. It integrates all necessary infrastructures, including the CT20101, SOF-Calibrated 48MHz USB Clock, which doesn’t need any external component, thus offering a cost-effective solution. CT25100 supports bus-powered mode and enables efficient system power management with suspend and remote wake-up signals.
CT25100 handles requests from the USB host reading the required information from a virtual address space which maps to a combination of ROM and RAM. The ROM contains Billboard specific “boilerplate” data mostly specified in the USB Device Class Definition for Billboard Devices specification; the latter contains product specific data and dynamic information.
Key features
- USB 2.0-certified, Full-Speed (12 Mbps)
- Supports native Billboard Device class driver
- Integrated USB termination resistors
- Allows the use of SRAM and ROM for storing configuration parameters
- Billboard Device class specific descriptors
- Clocking: Integrated 48-MHz clock oscillator
- Supports bus-/self-powered configurations
- USB Suspend mode for low power
- No external crystal
- No external components
- Voltage and current references, test infrastructures, included
Block Diagram

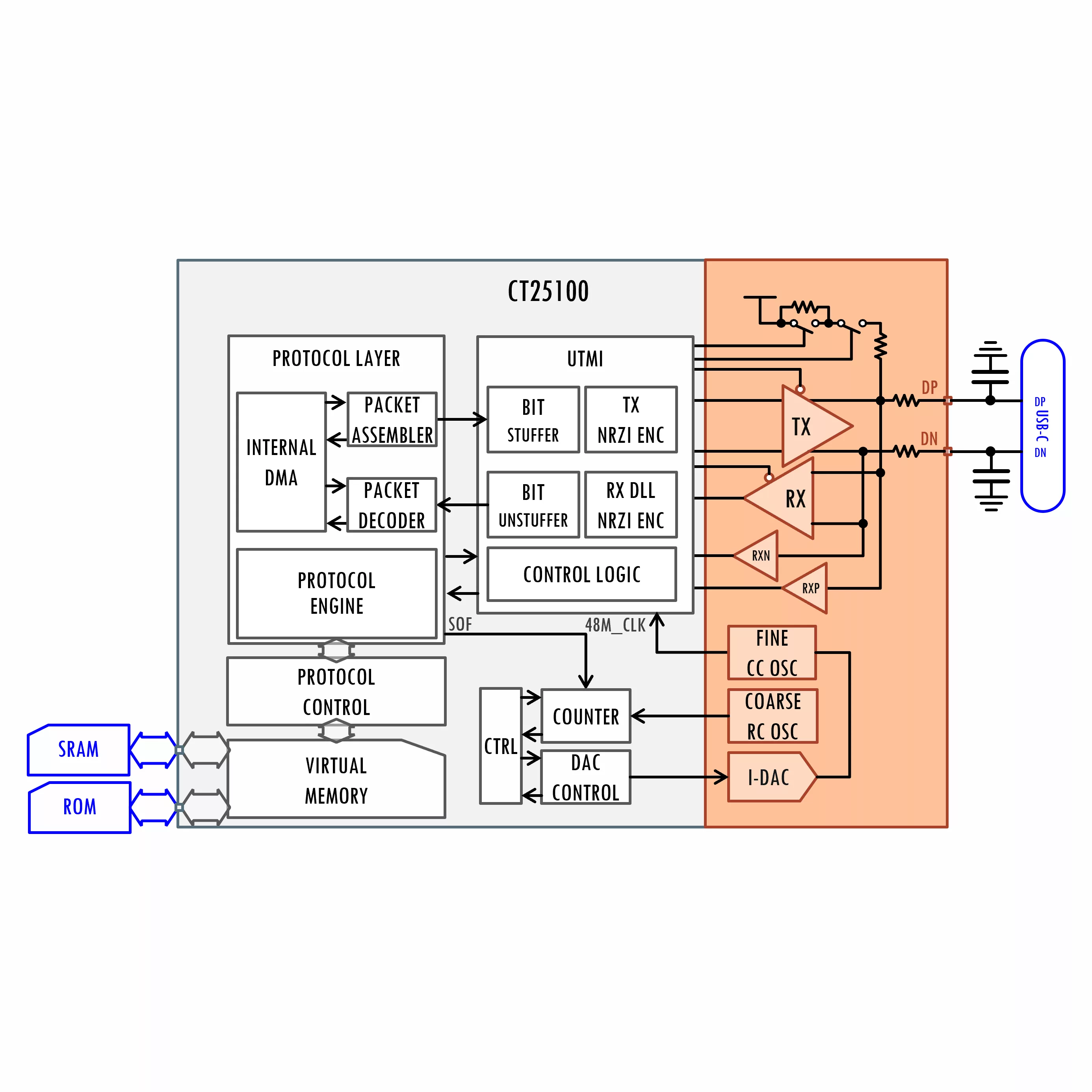

CT25100 block diagram
Applications
- USB Devices
Files
Note: some files may require an NDA depending on provider policy.
Specifications
Identity
Part Number
CT25100
Vendor
Canova Tech Srl
Provider
Canova Tech Srl
HQ:
Italy
Based in Padova, Italy, Canova Tech has been providing Standards and Custom IP plus Design Services for full IC Integration, to a global client base of tier-one companies since 2005.
Our Engineers attend and contribute to several Standards, including IEEE 802.3 initiatives, OPEN Alliance and USB IF.
We understand and implement Customer requirements from concept definition down to transfer to production.
Our Customers benefit directly from our insight into the market direction through our fundamental values, Technology Innovation, State of the Art mixed-signal Design Methodology and the Quality of Deliverables.
