Vendor: NTLab Category: Root Of Trust

UHF RFID tag IC with cryptographic authentication and -15 dBm sensitivity

The chip is intended for use in passive UHF transponder applications.

Contact Provider Request Datasheet
SMIC 180nm G Silicon Proven View all specifications

Overview

The chip is intended for use in passive UHF transponder applications. IC derives its operating power from an RF electromagnetic field generated by a reader, which is received and rectified by the chip. The chip sends the answer back to the reader using a backscatter modulation technique. NT1025_4E4 provides a fast and flexible anti-collision protocol based on internal random number generator according to EPC standard. NT1025_4E4 supports all EPC C1G2 mandatory commands. NT1025_4E4 has a 480 bit EEPROM organized in 4 banks. NT1025_4E4 provides an authentication procedure based on the GOST 28147-89 cryptographic algorithm. For implementation of the algorithm, an additional 128-bit nonvolatile memory bank is used to store a secret key (Key128).

Key features

  • SMIC EEPROM CMOS 180 nm
  • Passive operation – no battery needed
  • Input impedance 14-j580 Ohm
  • Read sensitivity -15 dBm
  • Operating frequency 860 - 960 MHz
  • EPC Class 1 Generation 2 compliant
  • 352 bit memory organized in 4 banks: EPC, TID, RESERVED and USER and 128 bit bank for secret key storing
  • Secret-key authentication using crypto algorithm
  • Support of ClearKey, WriteKey and Authenticate custom commands for secret key management and authentication procedure
  • Small area (0.3 mm2)

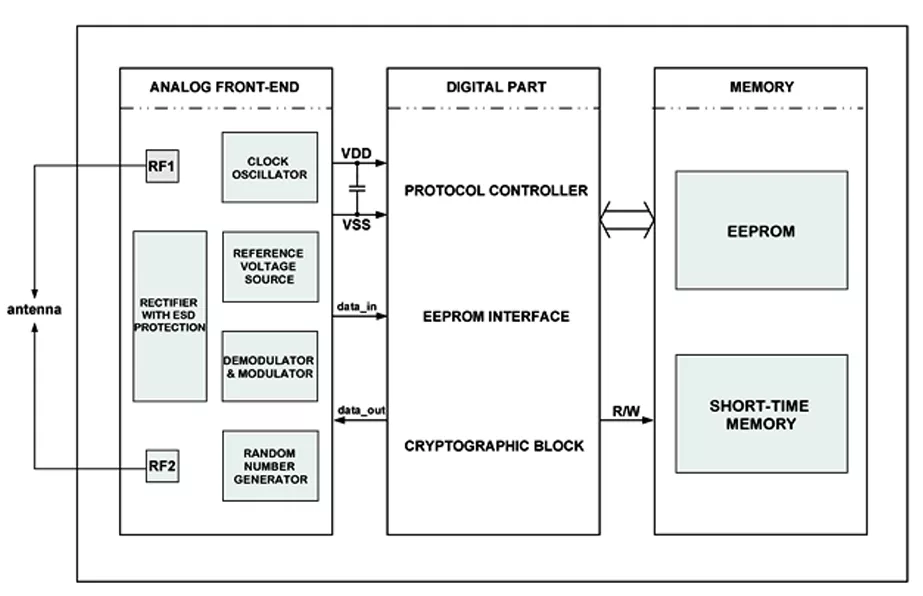

Block Diagram

NT1025_4E4 block diagram

Applications

  • Protection of goods against counterfeiting
  • Supply chain management and logistics
  • Airline baggage handling
  • Mail and parcel delivery
  • Automobile billing systems
  • Asset tagging

What’s Included?

  • Datasheet
  • Layout view (GDSII)
  • Characterization report
  • Behavioral model
  • SPICE netlist (.cdl)
  • Integration support

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Silicon Options

Foundry Node Process Maturity
SMIC 180nm G Silicon Proven

Specifications

Identity

Part Number
NT1025_4E4
Vendor
NTLab

Provider

NTLab
HQ: Lithuania
NTLab is a vertically integrated microelectronics design center. It has 70+ experienced and qualified engineers. NTLab specializes in the designing of mixed-signal and RF ICs and Systems-on-Chip. It has a wide range of own silicon-verified IP blocks: processor cores, interfaces, analog and high-frequency PHYs, etc., thus allowing customized design to be fast and predictable. In-company unique combination of competences in digital, analog and RF circuits and embedded software enables NTLab to participate in the projects that require deep research and utilize most sophisticated and advanced techniques: multi-system GPS/GLONASS/Galileo/BeiDou/NavIC(IRNSS)/QZSS/SBAS navigation, RF ID, wireless communications, etc. All designed ICs are provided with test and development tools, as well as with reference software. NTLab offers a wide range of silicon proven analog/mixed-signal IPs in 0.35µm, 0.25 µm, 0.18 µm, 0.13 µm, 0.09 µm, 65nm, 55nm, 40nm, 28nm, 22 nm CMOS and SiGe BiCMOS processes. These IPs are suitable for devices targeted both consumer and industrial markets. Most of these IPs have been proven in silicon on the foundries: Samsung, UMC, GlobalFoundries, SMIC, VIS, Tower, X-FAB, iHP, AMS, SilTerra, STMicroelectronics, Winfoundry.
